tigl::CTiglRelativelyPositionedComponent Class Reference

#include <CTiglRelativelyPositionedComponent.h>

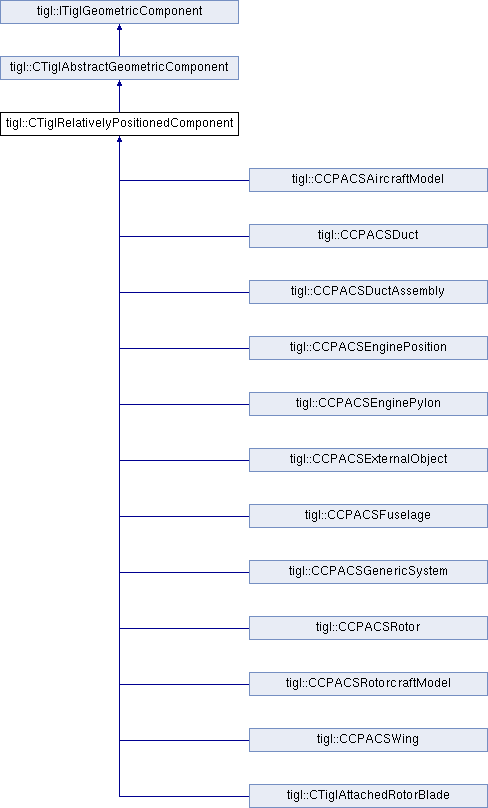

Inheritance diagram for tigl::CTiglRelativelyPositionedComponent:

Public Types
typedef std::vector< CTiglRelativelyPositionedComponent * >	ChildContainerType

Public Member Functions
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformationSE3 > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT ChildContainerType	GetChildren (bool recursive)
TIGL_EXPORT boost::optional< const std::string & >	GetParentUID () const
virtual TIGL_EXPORT CTiglPoint	GetRotation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetRotationType () const
virtual TIGL_EXPORT CTiglPoint	GetScaling () const
virtual TIGL_EXPORT ECPACSTranslationType	GetScalingType () const
TIGL_EXPORT TiglSymmetryAxis	GetSymmetryAxis () const override
virtual TIGL_EXPORT CTiglTransformation	GetTransformationMatrix () const
virtual TIGL_EXPORT CTiglPoint	GetTranslation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetTranslationType () const
TIGL_EXPORT void	Reset () const
TIGL_EXPORT void	SetParentUID (const std::string &parentUID)
virtual TIGL_EXPORT void	SetSymmetryAxis (const TiglSymmetryAxis &axis)
virtual TIGL_EXPORT void	SetTransformation (const CCPACSTransformation &transform)
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
virtual TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const =0
virtual TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const =0
virtual TIGL_EXPORT std::string	GetDefaultedUID () const =0
virtual bool	IsIndependentGeometry () const
virtual	~ITiglGeometricComponent ()

Protected Types
typedef std::map< int, int >	FusedElementsContainerType

Private Member Functions
TIGL_EXPORT void	AddChild (CTiglRelativelyPositionedComponent &child)
TIGL_EXPORT void	ClearChildren ()
TIGL_EXPORT boost::optional< const CCPACSTransformation & >	GetTransform () const
TIGL_EXPORT boost::optional< const CCPACSTransformationSE3 & >	GetTransformSE3 () const
TIGL_EXPORT void	SetParent (CTiglRelativelyPositionedComponent &parent)

Private Attributes
ChildContainerType	_children
CTiglRelativelyPositionedComponent *	_parent
MaybeOptionalPtr< std::string >	_parentUID
	UID of the parent of this component, if supported by derived type.
boost::optional< TiglSymmetryAxis > *	_symmetryAxis
MaybeOptionalPtr< CCPACSTransformation >	_transformation
MaybeOptionalPtr< CCPACSTransformationSE3 >	_transformationSE3

Friends
class	CTiglUIDManager

Additional Inherited Members
Protected Member Functions inherited from tigl::CTiglAbstractGeometricComponent
virtual PNamedShape	BuildLoft () const =0
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Member Typedef Documentation

ChildContainerType

typedef std::vector<CTiglRelativelyPositionedComponent*> tigl::CTiglRelativelyPositionedComponent::ChildContainerType

FusedElementsContainerType

typedef std::map<int, int> tigl::CTiglRelativelyPositionedComponent::FusedElementsContainerType

protected

Constructor & Destructor Documentation

CTiglRelativelyPositionedComponent() [1/5]

TIGL_EXPORT tigl::CTiglRelativelyPositionedComponent::CTiglRelativelyPositionedComponent ( MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans )

explicit

CTiglRelativelyPositionedComponent() [2/5]

TIGL_EXPORT tigl::CTiglRelativelyPositionedComponent::CTiglRelativelyPositionedComponent ( MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > * symmetryAxis )

explicit

CTiglRelativelyPositionedComponent() [3/5]

TIGL_EXPORT tigl::CTiglRelativelyPositionedComponent::CTiglRelativelyPositionedComponent ( MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformationSE3 > trans )

explicit

CTiglRelativelyPositionedComponent() [4/5]

TIGL_EXPORT tigl::CTiglRelativelyPositionedComponent::CTiglRelativelyPositionedComponent ( tigl::CTiglRelativelyPositionedComponent * parent, MaybeOptionalPtr< CCPACSTransformation > trans )

explicit

CTiglRelativelyPositionedComponent() [5/5]

TIGL_EXPORT tigl::CTiglRelativelyPositionedComponent::CTiglRelativelyPositionedComponent ( tigl::CTiglRelativelyPositionedComponent * parent, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > * symmetryAxis )

explicit

Member Function Documentation

AddChild()

TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::AddChild ( CTiglRelativelyPositionedComponent & child )

private

ClearChildren()

TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::ClearChildren ( )

private

GetChildren()

TIGL_EXPORT ChildContainerType tigl::CTiglRelativelyPositionedComponent::GetChildren

(

bool

recursive

)

GetParentUID()

TIGL_EXPORT boost::optional< const std::string & > tigl::CTiglRelativelyPositionedComponent::GetParentUID

(

)

const

GetRotation()

virtual TIGL_EXPORT CTiglPoint tigl::CTiglRelativelyPositionedComponent::GetRotation ( ) const

virtual

GetRotationType()

virtual TIGL_EXPORT ECPACSTranslationType tigl::CTiglRelativelyPositionedComponent::GetRotationType ( ) const

virtual

GetScaling()

virtual TIGL_EXPORT CTiglPoint tigl::CTiglRelativelyPositionedComponent::GetScaling ( ) const

virtual

GetScalingType()

virtual TIGL_EXPORT ECPACSTranslationType tigl::CTiglRelativelyPositionedComponent::GetScalingType ( ) const

virtual

GetSymmetryAxis()

TIGL_EXPORT TiglSymmetryAxis tigl::CTiglRelativelyPositionedComponent::GetSymmetryAxis ( ) const

overridevirtual

Reimplemented from tigl::CTiglAbstractGeometricComponent.

GetTransform()

TIGL_EXPORT boost::optional< const CCPACSTransformation & > tigl::CTiglRelativelyPositionedComponent::GetTransform ( ) const

private

GetTransformationMatrix()

virtual TIGL_EXPORT CTiglTransformation tigl::CTiglRelativelyPositionedComponent::GetTransformationMatrix ( ) const

virtual

Reimplemented in tigl::CCPACSRotor, and tigl::CTiglAttachedRotorBlade.

GetTransformSE3()

TIGL_EXPORT boost::optional< const CCPACSTransformationSE3 & > tigl::CTiglRelativelyPositionedComponent::GetTransformSE3 ( ) const

private

GetTranslation()

virtual TIGL_EXPORT CTiglPoint tigl::CTiglRelativelyPositionedComponent::GetTranslation ( ) const

virtual

Reimplemented in tigl::CCPACSRotor.

GetTranslationType()

virtual TIGL_EXPORT ECPACSTranslationType tigl::CTiglRelativelyPositionedComponent::GetTranslationType ( ) const

virtual

Reset()

TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::Reset

(

)

const

SetParent()

TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::SetParent ( CTiglRelativelyPositionedComponent & parent )

private

SetParentUID()

TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::SetParentUID

(

const std::string &

parentUID

)

SetSymmetryAxis()

virtual TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::SetSymmetryAxis ( const TiglSymmetryAxis & axis )

virtual

Reimplemented in tigl::CCPACSEnginePosition, tigl::CCPACSEnginePylon, tigl::CCPACSExternalObject, tigl::CCPACSFuselage, and tigl::CCPACSWing.

SetTransformation()

virtual TIGL_EXPORT void tigl::CTiglRelativelyPositionedComponent::SetTransformation ( const CCPACSTransformation & transform )

virtual

Reimplemented in tigl::CCPACSEnginePosition, tigl::CCPACSEnginePylon, tigl::CCPACSExternalObject, and tigl::CCPACSFuselage.

Friends And Related Symbol Documentation

CTiglUIDManager

friend class CTiglUIDManager

friend

Field Documentation

_children

ChildContainerType tigl::CTiglRelativelyPositionedComponent::_children

private

_parent

CTiglRelativelyPositionedComponent* tigl::CTiglRelativelyPositionedComponent::_parent

private

_parentUID

MaybeOptionalPtr<std::string> tigl::CTiglRelativelyPositionedComponent::_parentUID

private

UID of the parent of this component, if supported by derived type.

_symmetryAxis

boost::optional<TiglSymmetryAxis>* tigl::CTiglRelativelyPositionedComponent::_symmetryAxis

private

_transformation

MaybeOptionalPtr<CCPACSTransformation> tigl::CTiglRelativelyPositionedComponent::_transformation

private

_transformationSE3

MaybeOptionalPtr<CCPACSTransformationSE3> tigl::CTiglRelativelyPositionedComponent::_transformationSE3

private

---

The documentation for this class was generated from the following file:

• CTiglRelativelyPositionedComponent.h
