tigl::CCPACSRotor Class Reference

#include <CCPACSRotor.h>

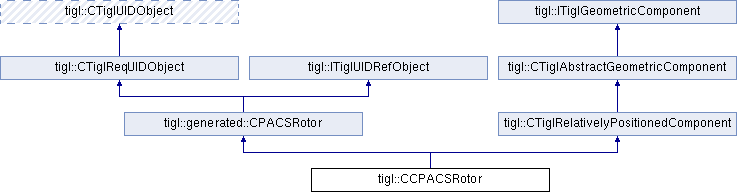

Inheritance diagram for tigl::CCPACSRotor:

Public Member Functions
TIGL_EXPORT	CCPACSRotor (CCPACSRotors *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT const CCPACSConfiguration &	GetConfiguration () const
TIGL_EXPORT CCPACSConfiguration &	GetConfiguration ()
TIGL_EXPORT TiglRotorType	GetDefaultedType () const
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT double	GetNominalRotationsPerMinute ()
TIGL_EXPORT double	GetRadius ()
TIGL_EXPORT double	GetReferenceArea ()
TIGL_EXPORT const CTiglAttachedRotorBlade &	GetRotorBlade (size_t index) const
TIGL_EXPORT CTiglAttachedRotorBlade &	GetRotorBlade (size_t index)
TIGL_EXPORT const CCPACSRotorBladeAttachment &	GetRotorBladeAttachment (size_t index) const
TIGL_EXPORT CCPACSRotorBladeAttachment &	GetRotorBladeAttachment (size_t index)
TIGL_EXPORT size_t	GetRotorBladeAttachmentCount () const
TIGL_EXPORT size_t	GetRotorBladeCount () const
TIGL_EXPORT PNamedShape	GetRotorDisk ()
TIGL_EXPORT double	GetSolidity ()
TIGL_EXPORT double	GetSurfaceArea ()
TIGL_EXPORT double	GetTipSpeed ()
TIGL_EXPORT double	GetTotalBladePlanformArea ()
TIGL_EXPORT CTiglTransformation	GetTransformationMatrix () const override
TIGL_EXPORT CTiglPoint	GetTranslation () const override
TIGL_EXPORT double	GetVolume ()
TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &rotorXPath) override
Public Member Functions inherited from tigl::generated::CPACSRotor
TIGL_EXPORT	CPACSRotor (CCPACSRotors *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
virtual TIGL_EXPORT const boost::optional< double > &	GetNominalRotationsPerMinute () const
TIGL_EXPORT CCPACSRotors *	GetParent ()
TIGL_EXPORT const CCPACSRotors *	GetParent () const
virtual TIGL_EXPORT const boost::optional< std::string > &	GetParentUID () const
virtual TIGL_EXPORT const CCPACSRotorHub &	GetRotorHub () const
virtual TIGL_EXPORT CCPACSRotorHub &	GetRotorHub ()
virtual TIGL_EXPORT const boost::optional< TiglSymmetryAxis > &	GetSymmetry () const
virtual TIGL_EXPORT const CCPACSTransformation &	GetTransformation () const
virtual TIGL_EXPORT CCPACSTransformation &	GetTransformation ()
virtual TIGL_EXPORT const boost::optional< CPACSRotor_type > &	GetType () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetNominalRotationsPerMinute (const boost::optional< double > &value)
virtual TIGL_EXPORT void	SetParentUID (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetSymmetry (const boost::optional< TiglSymmetryAxis > &value)
virtual TIGL_EXPORT void	SetType (const boost::optional< CPACSRotor_type > &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSRotor ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default
Public Member Functions inherited from tigl::CTiglRelativelyPositionedComponent
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT ChildContainerType	GetChildren (bool recursive)
TIGL_EXPORT boost::optional< const std::string & >	GetParentUID () const
virtual TIGL_EXPORT CTiglPoint	GetRotation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetRotationType () const
virtual TIGL_EXPORT CTiglPoint	GetScaling () const
virtual TIGL_EXPORT ECPACSTranslationType	GetScalingType () const
TIGL_EXPORT TiglSymmetryAxis	GetSymmetryAxis () const override
virtual TIGL_EXPORT ECPACSTranslationType	GetTranslationType () const
TIGL_EXPORT void	Reset () const
TIGL_EXPORT void	SetParentUID (const std::string &parentUID)
virtual TIGL_EXPORT void	SetSymmetryAxis (const TiglSymmetryAxis &axis)
virtual TIGL_EXPORT void	SetTransformation (const CCPACSTransformation &transform)
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
virtual TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual	~ITiglGeometricComponent ()

Protected Member Functions
PNamedShape	BuildLoft () const override
void	Cleanup ()
void	Update ()
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Member Functions
void	InvalidateImpl (const boost::optional< std::string > &source) const override

Additional Inherited Members
Public Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::vector< CTiglRelativelyPositionedComponent * >	ChildContainerType
Protected Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::map< int, int >	FusedElementsContainerType
Protected Attributes inherited from tigl::generated::CPACSRotor
boost::optional< std::string >	m_description
	Description of the rotor. More...
std::string	m_name
	Name of the rotor. More...
boost::optional< double >	m_nominalRotationsPerMinute
	Nominal value of the angular rotation speed in rotations per minute (rpm). More...
CCPACSRotors *	m_parent
boost::optional< std::string >	m_parentUID
	UID of the part to which the rotor is mounted (if any). The parent of the rotor can e.g. be the fuselage. In each rotorcraft model, there is exactly one part without a parent part (The root of the connection hierarchy). More...
CCPACSRotorHub	m_rotorHub
	The rotorHub element contains the definition of the rotor hub type and number and azimuth angles of the attached blades and their hinges. The rotor hub position and attitude coincides with the rotor axis system's origin and z axis. More...
boost::optional< TiglSymmetryAxis >	m_symmetry
CCPACSTransformation	m_transformation
	Transformation (scaling, rotation, translation). This element is used to define the position and attitude of the rotor relative to the global or the parent component's axis system. Note that an anisotropical scaling transformation should not be applied to the rotor. More...
boost::optional< CPACSRotor_type >	m_type
	Rotor type. Possible values: "mainRotor" (default), "tailRotor", "fenestron" or "propeller".. More...
std::string	m_uID
CTiglUIDManager *	m_uidMgr
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Constructor & Destructor Documentation

CCPACSRotor()

TIGL_EXPORT tigl::CCPACSRotor::CCPACSRotor	(	CCPACSRotors *	parent,
		CTiglUIDManager *	uidMgr
	)

Member Function Documentation

BuildLoft()

PNamedShape tigl::CCPACSRotor::BuildLoft ( ) const

overrideprotectedvirtual

Implements tigl::CTiglAbstractGeometricComponent.

Cleanup()

void tigl::CCPACSRotor::Cleanup ( )

protected

GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSRotor::GetComponentIntent ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSRotor::GetComponentType ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetConfiguration() [1/2]

TIGL_EXPORT const CCPACSConfiguration& tigl::CCPACSRotor::GetConfiguration

(

)

const

GetConfiguration() [2/2]

TIGL_EXPORT CCPACSConfiguration& tigl::CCPACSRotor::GetConfiguration

(

)

GetDefaultedType()

TIGL_EXPORT TiglRotorType tigl::CCPACSRotor::GetDefaultedType

(

)

const

GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSRotor::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetNominalRotationsPerMinute()

TIGL_EXPORT double tigl::CCPACSRotor::GetNominalRotationsPerMinute

(

)

GetRadius()

TIGL_EXPORT double tigl::CCPACSRotor::GetRadius

(

)

GetReferenceArea()

TIGL_EXPORT double tigl::CCPACSRotor::GetReferenceArea

(

)

GetRotorBlade() [1/2]

TIGL_EXPORT const CTiglAttachedRotorBlade& tigl::CCPACSRotor::GetRotorBlade

(

size_t

index

)

const

GetRotorBlade() [2/2]

TIGL_EXPORT CTiglAttachedRotorBlade& tigl::CCPACSRotor::GetRotorBlade

(

size_t

index

)

GetRotorBladeAttachment() [1/2]

TIGL_EXPORT const CCPACSRotorBladeAttachment& tigl::CCPACSRotor::GetRotorBladeAttachment

(

size_t

index

)

const

GetRotorBladeAttachment() [2/2]

TIGL_EXPORT CCPACSRotorBladeAttachment& tigl::CCPACSRotor::GetRotorBladeAttachment

(

size_t

index

)

GetRotorBladeAttachmentCount()

TIGL_EXPORT size_t tigl::CCPACSRotor::GetRotorBladeAttachmentCount

(

)

const

GetRotorBladeCount()

TIGL_EXPORT size_t tigl::CCPACSRotor::GetRotorBladeCount

(

)

const

GetRotorDisk()

TIGL_EXPORT PNamedShape tigl::CCPACSRotor::GetRotorDisk

(

)

GetSolidity()

TIGL_EXPORT double tigl::CCPACSRotor::GetSolidity

(

)

GetSurfaceArea()

TIGL_EXPORT double tigl::CCPACSRotor::GetSurfaceArea

(

)

GetTipSpeed()

TIGL_EXPORT double tigl::CCPACSRotor::GetTipSpeed

(

)

GetTotalBladePlanformArea()

TIGL_EXPORT double tigl::CCPACSRotor::GetTotalBladePlanformArea

(

)

GetTransformationMatrix()

TIGL_EXPORT CTiglTransformation tigl::CCPACSRotor::GetTransformationMatrix ( ) const

overridevirtual

Reimplemented from tigl::CTiglRelativelyPositionedComponent.

GetTranslation()

TIGL_EXPORT CTiglPoint tigl::CCPACSRotor::GetTranslation ( ) const

overridevirtual

Reimplemented from tigl::CTiglRelativelyPositionedComponent.

GetVolume()

TIGL_EXPORT double tigl::CCPACSRotor::GetVolume

(

)

InvalidateImpl()

void tigl::CCPACSRotor::InvalidateImpl ( const boost::optional< std::string > &  source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

ReadCPACS()

TIGL_EXPORT void tigl::CCPACSRotor::ReadCPACS ( const TixiDocumentHandle &  tixiHandle, const std::string &  rotorXPath  )

overridevirtual

Reimplemented from tigl::generated::CPACSRotor.

Update()

void tigl::CCPACSRotor::Update ( )

protected

---

The documentation for this class was generated from the following file:

• CCPACSRotor.h
