tigl::CCPACSFuselage Class Reference

#include <CCPACSFuselage.h>

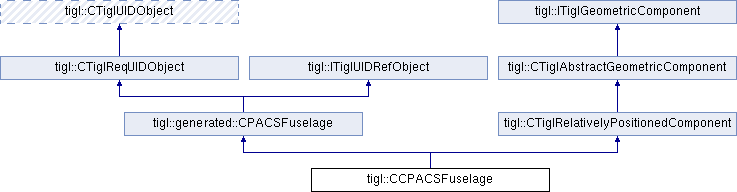

Inheritance diagram for tigl::CCPACSFuselage:

Public Member Functions
TIGL_EXPORT	CCPACSFuselage (CCPACSFuselages *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT double	GetCircumference (int segmentIndex, double eta)
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT CCPACSConfiguration &	GetConfiguration () const
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT TiglGetPointBehavior	GetGetPointBehavior () const
TIGL_EXPORT std::vector< gp_Pnt >	GetGuideCurvePoints () const
TIGL_EXPORT CCPACSGuideCurve &	GetGuideCurveSegment (std::string uid)
TIGL_EXPORT const CCPACSGuideCurve &	GetGuideCurveSegment (std::string uid) const
TIGL_EXPORT gp_Pnt	GetMinumumDistanceToGround (gp_Ax1 RAxis, double angle)
TIGL_EXPORT gp_Pnt	GetPoint (int segmentIndex, double eta, double zeta)
TIGL_EXPORT boost::optional< CTiglTransformation >	GetPositioningTransformation (const std::string &sectionUID)
TIGL_EXPORT CCPACSFuselageSection &	GetSection (int index) const
TIGL_EXPORT int	GetSectionCount () const
TIGL_EXPORT TopoDS_Shape	GetSectionFace (const std::string section_uid) const
TIGL_EXPORT CCPACSFuselageSegment &	GetSegment (const int index)
TIGL_EXPORT const CCPACSFuselageSegment &	GetSegment (const int index) const
TIGL_EXPORT CCPACSFuselageSegment &	GetSegment (std::string uid)
TIGL_EXPORT int	GetSegmentCount () const
TIGL_EXPORT double	GetSurfaceArea ()
TIGL_EXPORT double	GetVolume ()
TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &fuselageXPath) override
TIGL_EXPORT void	SetGetPointBehavior (TiglGetPointBehavior behavior=asParameterOnSurface)
TIGL_EXPORT void	SetParentUID (const boost::optional< std::string > &value) override
TIGL_EXPORT void	SetSymmetryAxis (const TiglSymmetryAxis &axis) override
TIGL_EXPORT void	SetTransformation (const CCPACSTransformation &transform) override
TIGL_EXPORT	~CCPACSFuselage () override
Public Member Functions inherited from tigl::generated::CPACSFuselage
TIGL_EXPORT	CPACSFuselage (CCPACSFuselages *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT const boost::optional< CPACSCompartments > &	GetCompartments () const
virtual TIGL_EXPORT boost::optional< CPACSCompartments > &	GetCompartments ()
virtual TIGL_EXPORT CPACSCompartments &	GetCompartments (CreateIfNotExistsTag)
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CCPACSFuselages *	GetParent ()
TIGL_EXPORT const CCPACSFuselages *	GetParent () const
virtual TIGL_EXPORT const boost::optional< std::string > &	GetParentUID () const
virtual TIGL_EXPORT const boost::optional< CCPACSPositionings > &	GetPositionings () const
virtual TIGL_EXPORT boost::optional< CCPACSPositionings > &	GetPositionings ()
virtual TIGL_EXPORT CCPACSPositionings &	GetPositionings (CreateIfNotExistsTag)
virtual TIGL_EXPORT const CCPACSFuselageSections &	GetSections () const
virtual TIGL_EXPORT CCPACSFuselageSections &	GetSections ()
virtual TIGL_EXPORT const CCPACSFuselageSegments &	GetSegments () const
virtual TIGL_EXPORT CCPACSFuselageSegments &	GetSegments ()
virtual TIGL_EXPORT const boost::optional< CCPACSFuselageStructure > &	GetStructure () const
virtual TIGL_EXPORT boost::optional< CCPACSFuselageStructure > &	GetStructure ()
virtual TIGL_EXPORT CCPACSFuselageStructure &	GetStructure (CreateIfNotExistsTag)
virtual TIGL_EXPORT const boost::optional< TiglSymmetryAxis > &	GetSymmetry () const
virtual TIGL_EXPORT const CCPACSTransformation &	GetTransformation () const
virtual TIGL_EXPORT CCPACSTransformation &	GetTransformation ()
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	RemoveCompartments ()
virtual TIGL_EXPORT void	RemovePositionings ()
virtual TIGL_EXPORT void	RemoveStructure ()
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetSymmetry (const boost::optional< TiglSymmetryAxis > &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSFuselage ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default
Public Member Functions inherited from tigl::CTiglRelativelyPositionedComponent
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT ChildContainerType	GetChildren (bool recursive)
TIGL_EXPORT boost::optional< const std::string & >	GetParentUID () const
virtual TIGL_EXPORT CTiglPoint	GetRotation () const
virtual TIGL_EXPORT CTiglPoint	GetScaling () const
TIGL_EXPORT TiglSymmetryAxis	GetSymmetryAxis () const override
virtual TIGL_EXPORT CTiglTransformation	GetTransformationMatrix () const
virtual TIGL_EXPORT CTiglPoint	GetTranslation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetTranslationType () const
TIGL_EXPORT void	Reset () const
TIGL_EXPORT void	SetParentUID (const std::string &parentUID)
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
virtual TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual	~ITiglGeometricComponent ()

Protected Member Functions
void	BuildCleanLoft (PNamedShape &cache) const
PNamedShape	BuildLoft () const override
void	Cleanup ()
void	SetFaceTraits (PNamedShape loft) const
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Member Functions
std::string	GetShortShapeName () const
void	InvalidateImpl (const boost::optional< std::string > &source) const override

Private Attributes
BRep_Builder	aBuilder
TopoDS_Compound	aCompound
Cache< PNamedShape, CCPACSFuselage >	cleanLoft
CCPACSConfiguration *	configuration
FusedElementsContainerType	fusedElements
TiglGetPointBehavior	getPointBehavior {asParameterOnSurface}
double	myVolume

Friends
class	CCPACSFuselageSegment

Additional Inherited Members
Public Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::vector< CTiglRelativelyPositionedComponent * >	ChildContainerType
Protected Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::map< int, int >	FusedElementsContainerType
Protected Attributes inherited from tigl::generated::CPACSFuselage
boost::optional< CPACSCompartments >	m_compartments
boost::optional< std::string >	m_description
	Description of fuselage. More...
std::string	m_name
	Name of fuselage. More...
CCPACSFuselages *	m_parent
boost::optional< std::string >	m_parentUID
	UID of part to which the fuselage is mounted (if any) More...
boost::optional< CCPACSPositionings >	m_positionings
CCPACSFuselageSections	m_sections
CCPACSFuselageSegments	m_segments
boost::optional< CCPACSFuselageStructure >	m_structure
boost::optional< TiglSymmetryAxis >	m_symmetry
CCPACSTransformation	m_transformation
std::string	m_uID
CTiglUIDManager *	m_uidMgr
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Constructor & Destructor Documentation

CCPACSFuselage()

TIGL_EXPORT tigl::CCPACSFuselage::CCPACSFuselage	(	CCPACSFuselages *	parent,
		CTiglUIDManager *	uidMgr
	)

~CCPACSFuselage()

TIGL_EXPORT tigl::CCPACSFuselage::~CCPACSFuselage ( )

override

Member Function Documentation

BuildCleanLoft()

void tigl::CCPACSFuselage::BuildCleanLoft ( PNamedShape &  cache ) const

protected

BuildLoft()

PNamedShape tigl::CCPACSFuselage::BuildLoft ( ) const

overrideprotectedvirtual

Implements tigl::CTiglAbstractGeometricComponent.

Cleanup()

void tigl::CCPACSFuselage::Cleanup ( )

protected

GetCircumference()

TIGL_EXPORT double tigl::CCPACSFuselage::GetCircumference	(	int	segmentIndex,
		double	eta
	)

GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSFuselage::GetComponentIntent ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSFuselage::GetComponentType ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetConfiguration()

TIGL_EXPORT CCPACSConfiguration& tigl::CCPACSFuselage::GetConfiguration

(

)

const

GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSFuselage::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetGetPointBehavior()

TIGL_EXPORT TiglGetPointBehavior tigl::CCPACSFuselage::GetGetPointBehavior

(

)

const

GetGuideCurvePoints()

TIGL_EXPORT std::vector<gp_Pnt> tigl::CCPACSFuselage::GetGuideCurvePoints

(

)

const

GetGuideCurveSegment() [1/2]

TIGL_EXPORT CCPACSGuideCurve& tigl::CCPACSFuselage::GetGuideCurveSegment

(

std::string

uid

)

GetGuideCurveSegment() [2/2]

TIGL_EXPORT const CCPACSGuideCurve& tigl::CCPACSFuselage::GetGuideCurveSegment

(

std::string

uid

)

const

GetMinumumDistanceToGround()

TIGL_EXPORT gp_Pnt tigl::CCPACSFuselage::GetMinumumDistanceToGround	(	gp_Ax1	RAxis,
		double	angle
	)

GetPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSFuselage::GetPoint	(	int	segmentIndex,
		double	eta,
		double	zeta
	)

GetPositioningTransformation()

TIGL_EXPORT boost::optional<CTiglTransformation> tigl::CCPACSFuselage::GetPositioningTransformation

(

const std::string &

sectionUID

)

GetSection()

TIGL_EXPORT CCPACSFuselageSection& tigl::CCPACSFuselage::GetSection

(

int

index

)

const

GetSectionCount()

TIGL_EXPORT int tigl::CCPACSFuselage::GetSectionCount

(

)

const

GetSectionFace()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSFuselage::GetSectionFace

(

const std::string

section_uid

)

const

GetSegment() [1/3]

TIGL_EXPORT CCPACSFuselageSegment& tigl::CCPACSFuselage::GetSegment

(

const int

index

)

GetSegment() [2/3]

TIGL_EXPORT const CCPACSFuselageSegment& tigl::CCPACSFuselage::GetSegment

(

const int

index

)

const

GetSegment() [3/3]

TIGL_EXPORT CCPACSFuselageSegment& tigl::CCPACSFuselage::GetSegment

(

std::string

uid

)

GetSegmentCount()

TIGL_EXPORT int tigl::CCPACSFuselage::GetSegmentCount

(

)

const

GetShortShapeName()

std::string tigl::CCPACSFuselage::GetShortShapeName ( ) const

private

GetSurfaceArea()

TIGL_EXPORT double tigl::CCPACSFuselage::GetSurfaceArea

(

)

GetVolume()

TIGL_EXPORT double tigl::CCPACSFuselage::GetVolume

(

)

InvalidateImpl()

void tigl::CCPACSFuselage::InvalidateImpl ( const boost::optional< std::string > &  source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

ReadCPACS()

TIGL_EXPORT void tigl::CCPACSFuselage::ReadCPACS ( const TixiDocumentHandle &  tixiHandle, const std::string &  fuselageXPath  )

overridevirtual

Reimplemented from tigl::generated::CPACSFuselage.

SetFaceTraits()

void tigl::CCPACSFuselage::SetFaceTraits ( PNamedShape  loft ) const

protected

SetGetPointBehavior()

TIGL_EXPORT void tigl::CCPACSFuselage::SetGetPointBehavior

(

TiglGetPointBehavior

behavior = asParameterOnSurface

)

SetParentUID()

TIGL_EXPORT void tigl::CCPACSFuselage::SetParentUID ( const boost::optional< std::string > &  value )

overridevirtual

Reimplemented from tigl::generated::CPACSFuselage.

SetSymmetryAxis()

TIGL_EXPORT void tigl::CCPACSFuselage::SetSymmetryAxis ( const TiglSymmetryAxis &  axis )

overridevirtual

Reimplemented from tigl::CTiglRelativelyPositionedComponent.

SetTransformation()

TIGL_EXPORT void tigl::CCPACSFuselage::SetTransformation ( const CCPACSTransformation &  transform )

overridevirtual

Reimplemented from tigl::CTiglRelativelyPositionedComponent.

Friends And Related Function Documentation

CCPACSFuselageSegment

friend class CCPACSFuselageSegment

friend

Field Documentation

aBuilder

BRep_Builder tigl::CCPACSFuselage::aBuilder

private

aCompound

TopoDS_Compound tigl::CCPACSFuselage::aCompound

private

cleanLoft

Cache<PNamedShape, CCPACSFuselage> tigl::CCPACSFuselage::cleanLoft

private

Stores the loft with cutouts (e.g. ducts)

configuration

CCPACSConfiguration* tigl::CCPACSFuselage::configuration

private

Parent configuration

fusedElements

FusedElementsContainerType tigl::CCPACSFuselage::fusedElements

private

Stores already fused segments

getPointBehavior

TiglGetPointBehavior tigl::CCPACSFuselage::getPointBehavior {asParameterOnSurface}

private

myVolume

double tigl::CCPACSFuselage::myVolume

private

Volume of this fuselage

---

The documentation for this class was generated from the following file:

• CCPACSFuselage.h
