#include <CCPACSGuideCurve.h>

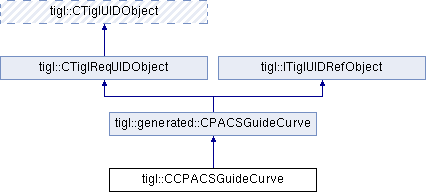

Inheritance diagram for tigl::CCPACSGuideCurve:

Public Types
enum	FromOrToDefinition { UID, CIRCUMFERENCE, PARAMETER }

Public Member Functions
TIGL_EXPORT	CCPACSGuideCurve (CCPACSGuideCurves parent, CTiglUIDManager uidMgr)

TIGL_EXPORT CCPACSGuideCurve *	GetConnectedCurve () const

TIGL_EXPORT TopoDS_Edge	GetCurve () const

TIGL_EXPORT std::vector< gp_Pnt >	GetCurvePoints () const

TIGL_EXPORT FromOrToDefinition	GetFromDefinition () const

TIGL_EXPORT double	GetFromDefinitionValue () const

TIGL_EXPORT CCPACSGuideCurve const *	GetRootCurve () const

TIGL_EXPORT FromOrToDefinition	GetToDefinition () const

TIGL_EXPORT double	GetToDefinitionValue () const

TIGL_EXPORT void	SetGuideCurveBuilder (IGuideCurveBuilder &b)

TIGL_EXPORT	~CCPACSGuideCurve (void) override

Public Member Functions inherited from tigl::generated::CPACSGuideCurve
TIGL_EXPORT	CPACSGuideCurve (CCPACSGuideCurves parent, CTiglUIDManager uidMgr)

virtual TIGL_EXPORT const boost::optional< CPACSGuideCurve_continuity > &	GetContinuity_choice1 () const

virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const

virtual TIGL_EXPORT const boost::optional< std::string > &	GetFromGuideCurveUID_choice1 () const

virtual TIGL_EXPORT const boost::optional< double > &	GetFromParameter_choice2_2 () const

virtual TIGL_EXPORT const boost::optional< double > &	GetFromRelativeCircumference_choice2_1 () const

virtual TIGL_EXPORT const std::string &	GetGuideCurveProfileUID () const

virtual TIGL_EXPORT const std::string &	GetName () const

virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()

virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const

TIGL_EXPORT CCPACSGuideCurves *	GetParent ()

TIGL_EXPORT const CCPACSGuideCurves *	GetParent () const

virtual TIGL_EXPORT const boost::optional< CPACSPointXYZ > &	GetRXDirection () const

virtual TIGL_EXPORT boost::optional< CPACSPointXYZ > &	GetRXDirection ()

virtual TIGL_EXPORT CPACSPointXYZ &	GetRXDirection (CreateIfNotExistsTag)

virtual TIGL_EXPORT const boost::optional< CPACSPointXYZ > &	GetTangent () const

virtual TIGL_EXPORT boost::optional< CPACSPointXYZ > &	GetTangent ()

virtual TIGL_EXPORT CPACSPointXYZ &	GetTangent (CreateIfNotExistsTag)

virtual TIGL_EXPORT const boost::optional< CPACSPointXYZ > &	GetTangent_choice2 () const

virtual TIGL_EXPORT boost::optional< CPACSPointXYZ > &	GetTangent_choice2 ()

virtual TIGL_EXPORT CPACSPointXYZ &	GetTangent_choice2 (CreateIfNotExistsTag)

virtual TIGL_EXPORT const boost::optional< double > &	GetToParameter_choice2 () const

virtual TIGL_EXPORT const boost::optional< double > &	GetToRelativeCircumference_choice1 () const

virtual TIGL_EXPORT const std::string &	GetUID () const

TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()

TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const

virtual TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath)

virtual TIGL_EXPORT void	RemoveRXDirection ()

virtual TIGL_EXPORT void	RemoveTangent ()

virtual TIGL_EXPORT void	RemoveTangent_choice2 ()

virtual TIGL_EXPORT void	SetContinuity_choice1 (const boost::optional< CPACSGuideCurve_continuity > &value)

virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)

virtual TIGL_EXPORT void	SetFromGuideCurveUID_choice1 (const boost::optional< std::string > &value)

virtual TIGL_EXPORT void	SetFromParameter_choice2_2 (const boost::optional< double > &value)

virtual TIGL_EXPORT void	SetFromRelativeCircumference_choice2_1 (const boost::optional< double > &value)

virtual TIGL_EXPORT void	SetGuideCurveProfileUID (const std::string &value)

virtual TIGL_EXPORT void	SetName (const std::string &value)

virtual TIGL_EXPORT void	SetToParameter_choice2 (const boost::optional< double > &value)

virtual TIGL_EXPORT void	SetToRelativeCircumference_choice1 (const boost::optional< double > &value)

virtual TIGL_EXPORT void	SetUID (const std::string &value)

TIGL_EXPORT bool	ValidateChoices () const

virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const

virtual TIGL_EXPORT	~CPACSGuideCurve ()

Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const

virtual	~CTiglReqUIDObject ()=default

Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const

Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default

Protected Member Functions
void	Cleanup (void)

Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Types
typedef std::vector< PCTiglPoint >	CCPACSGuideCurvePoints

Private Member Functions
void	BuildCurve (TopoDS_Edge &cache) const

	CCPACSGuideCurve (const CCPACSGuideCurve &)

void	InvalidateImpl (const boost::optional< std::string > &source) const override

void	operator= (const CCPACSGuideCurve &)

Private Attributes
Cache< TopoDS_Edge, CCPACSGuideCurve >	guideCurveTopo

IGuideCurveBuilder *	m_builder

Additional Inherited Members
Protected Attributes inherited from tigl::generated::CPACSGuideCurve
boost::optional< CPACSGuideCurve_continuity >	m_continuity_choice1
	Continuity definition for geometry generation. Possible options: C0, C1 from previous, C2 from previous, C1 to previous, C2 to previous. More...

boost::optional< std::string >	m_description
	Description of guide curve. More...

boost::optional< std::string >	m_fromGuideCurveUID_choice1
	Reference to the previous guide curve from which this guide curve shall start. More...

boost::optional< double >	m_fromParameter_choice2_2
	Reference to the parameter position from which the guide curve shall start. Valid values are in the interval -1.0...1.0. More...

boost::optional< double >	m_fromRelativeCircumference_choice2_1
	Reference to the relative circumference position from which the guide curve shall start. Valid values are in the interval -1.0...1.0. More...

std::string	m_guideCurveProfileUID
	Reference to a guide curve profile. More...

std::string	m_name
	Name of guide curve. More...

CCPACSGuideCurves *	m_parent

boost::optional< CPACSPointXYZ >	m_rXDirection
	Local direction along which the relative x-coordinates of the guide curve points are defined. For the wing the default is the wing's local x-axis, for the fuselage its the fuselage's local z-axis. More...

boost::optional< CPACSPointXYZ >	m_tangent
	Tangent at last point. More...

boost::optional< CPACSPointXYZ >	m_tangent_choice2
	Tangent at first point. More...

boost::optional< double >	m_toParameter_choice2
	The parameter position at which the guide curve shall end. Valid values are in the interval -1.0...1.0. More...

boost::optional< double >	m_toRelativeCircumference_choice1
	The relative circumference position at which the guide curve shall end. Valid values are in the interval -1,...,1. More...

std::string	m_uID

CTiglUIDManager *	m_uidMgr

Member Typedef Documentation

◆ CCPACSGuideCurvePoints

typedef std::vector<PCTiglPoint> tigl::CCPACSGuideCurve::CCPACSGuideCurvePoints

private

Member Enumeration Documentation

◆ FromOrToDefinition

enum tigl::CCPACSGuideCurve::FromOrToDefinition

Enumerator
UID
CIRCUMFERENCE
PARAMETER

Constructor & Destructor Documentation

◆ CCPACSGuideCurve() [1/2]

TIGL_EXPORT tigl::CCPACSGuideCurve::CCPACSGuideCurve	(	CCPACSGuideCurves *	parent,
		CTiglUIDManager *	uidMgr
	)

◆ ~CCPACSGuideCurve()

TIGL_EXPORT tigl::CCPACSGuideCurve::~CCPACSGuideCurve ( void )

override

◆ CCPACSGuideCurve() [2/2]

tigl::CCPACSGuideCurve::CCPACSGuideCurve ( const CCPACSGuideCurve & )

private

Member Function Documentation

◆ BuildCurve()

void tigl::CCPACSGuideCurve::BuildCurve ( TopoDS_Edge & cache ) const

private

◆ Cleanup()

void tigl::CCPACSGuideCurve::Cleanup ( void )

protected

◆ GetConnectedCurve()

TIGL_EXPORT CCPACSGuideCurve* tigl::CCPACSGuideCurve::GetConnectedCurve ( ) const

◆ GetCurve()

TIGL_EXPORT TopoDS_Edge tigl::CCPACSGuideCurve::GetCurve ( ) const

◆ GetCurvePoints()

TIGL_EXPORT std::vector<gp_Pnt> tigl::CCPACSGuideCurve::GetCurvePoints ( ) const

◆ GetFromDefinition()

TIGL_EXPORT FromOrToDefinition tigl::CCPACSGuideCurve::GetFromDefinition ( ) const

◆ GetFromDefinitionValue()

TIGL_EXPORT double tigl::CCPACSGuideCurve::GetFromDefinitionValue ( ) const

◆ GetRootCurve()

TIGL_EXPORT CCPACSGuideCurve const* tigl::CCPACSGuideCurve::GetRootCurve ( ) const

◆ GetToDefinition()

TIGL_EXPORT FromOrToDefinition tigl::CCPACSGuideCurve::GetToDefinition ( ) const

◆ GetToDefinitionValue()

TIGL_EXPORT double tigl::CCPACSGuideCurve::GetToDefinitionValue ( ) const

◆ InvalidateImpl()

void tigl::CCPACSGuideCurve::InvalidateImpl ( const boost::optional< std::string > & source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

◆ operator=()

void tigl::CCPACSGuideCurve::operator= ( const CCPACSGuideCurve & )

private

◆ SetGuideCurveBuilder()

TIGL_EXPORT void tigl::CCPACSGuideCurve::SetGuideCurveBuilder ( IGuideCurveBuilder & b )

Field Documentation

◆ guideCurveTopo

Cache<TopoDS_Edge, CCPACSGuideCurve> tigl::CCPACSGuideCurve::guideCurveTopo

private

Actual topological entity of the curve

◆ m_builder

IGuideCurveBuilder* tigl::CCPACSGuideCurve::m_builder

private

The documentation for this class was generated from the following file:

CCPACSGuideCurve.h
