tigl::CCPACSVessel Class Reference

#include <CCPACSVessel.h>

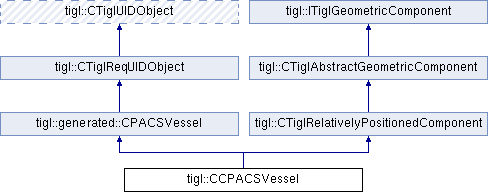

Inheritance diagram for tigl::CCPACSVessel:

Data Structures
struct	IsotensoidContour
	Approximated contour of an isotensoid dome section. More...

Public Member Functions
TIGL_EXPORT	CCPACSVessel (CCPACSVessels *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT double	GetCircumference (int segmentIndex, double eta)
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT CCPACSConfiguration &	GetConfiguration ()
TIGL_EXPORT CCPACSConfiguration const &	GetConfiguration () const
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT double	GetGeometricVolume ()
TIGL_EXPORT std::vector< gp_Pnt >	GetGuideCurvePoints () const
TIGL_EXPORT CCPACSGuideCurve &	GetGuideCurveSegment (std::string uid)
TIGL_EXPORT const CCPACSGuideCurve &	GetGuideCurveSegment (std::string uid) const
TIGL_EXPORT CCPACSFuselageSection &	GetSection (const std::string &sectionUID)
TIGL_EXPORT CCPACSFuselageSection const &	GetSection (const std::string &sectionUID) const
TIGL_EXPORT CCPACSFuselageSection &	GetSection (size_t index)
TIGL_EXPORT CCPACSFuselageSection const &	GetSection (size_t index) const
TIGL_EXPORT size_t	GetSectionCount () const
TIGL_EXPORT TopoDS_Shape	GetSectionFace (const std::string sectionUID) const
TIGL_EXPORT CCPACSFuselageSegment &	GetSegment (const size_t index)
TIGL_EXPORT const CCPACSFuselageSegment &	GetSegment (const size_t index) const
TIGL_EXPORT CCPACSFuselageSegment &	GetSegment (std::string uid)
TIGL_EXPORT size_t	GetSegmentCount () const
TIGL_EXPORT double	GetSurfaceArea ()
TIGL_EXPORT bool	HasEllipsoidDome () const
TIGL_EXPORT bool	HasIsotensoidDome () const
TIGL_EXPORT bool	HasSphericalDome () const
TIGL_EXPORT bool	HasTorisphericalDome () const
TIGL_EXPORT bool	IsVesselViaDesignParameters () const
TIGL_EXPORT bool	IsVesselViaSegments () const
TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) override
Public Member Functions inherited from tigl::generated::CPACSVessel
TIGL_EXPORT	CPACSVessel (CPACSVessels *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT const boost::optional< double > &	GetBurstPressure () const
virtual TIGL_EXPORT const boost::optional< double > &	GetCylinderLength_choice2 () const
virtual TIGL_EXPORT const boost::optional< double > &	GetCylinderRadius_choice2 () const
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT boost::optional< CPACSDomeType > &	GetDomeType_choice2 ()
virtual TIGL_EXPORT const boost::optional< CPACSDomeType > &	GetDomeType_choice2 () const
virtual TIGL_EXPORT CPACSDomeType &	GetDomeType_choice2 (CreateIfNotExistsTag)
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CPACSVessels *	GetParent ()
TIGL_EXPORT const CPACSVessels *	GetParent () const
virtual TIGL_EXPORT boost::optional< CCPACSFuselageSections > &	GetSections_choice1 ()
virtual TIGL_EXPORT const boost::optional< CCPACSFuselageSections > &	GetSections_choice1 () const
virtual TIGL_EXPORT CCPACSFuselageSections &	GetSections_choice1 (CreateIfNotExistsTag)
virtual TIGL_EXPORT boost::optional< CCPACSFuselageSegments > &	GetSegments_choice1 ()
virtual TIGL_EXPORT const boost::optional< CCPACSFuselageSegments > &	GetSegments_choice1 () const
virtual TIGL_EXPORT CCPACSFuselageSegments &	GetSegments_choice1 (CreateIfNotExistsTag)
virtual TIGL_EXPORT boost::optional< CCPACSVesselStructure > &	GetStructure ()
virtual TIGL_EXPORT const boost::optional< CCPACSVesselStructure > &	GetStructure () const
virtual TIGL_EXPORT CCPACSVesselStructure &	GetStructure (CreateIfNotExistsTag)
virtual TIGL_EXPORT CCPACSTransformation &	GetTransformation ()
virtual TIGL_EXPORT const CCPACSTransformation &	GetTransformation () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT boost::optional< CPACSFuelTankVolume > &	GetVolume ()
virtual TIGL_EXPORT const boost::optional< CPACSFuelTankVolume > &	GetVolume () const
virtual TIGL_EXPORT CPACSFuelTankVolume &	GetVolume (CreateIfNotExistsTag)
virtual TIGL_EXPORT void	RemoveDomeType_choice2 ()
virtual TIGL_EXPORT void	RemoveSections_choice1 ()
virtual TIGL_EXPORT void	RemoveSegments_choice1 ()
virtual TIGL_EXPORT void	RemoveStructure ()
virtual TIGL_EXPORT void	RemoveVolume ()
virtual TIGL_EXPORT void	SetBurstPressure (const boost::optional< double > &value)
virtual TIGL_EXPORT void	SetCylinderLength_choice2 (const boost::optional< double > &value)
virtual TIGL_EXPORT void	SetCylinderRadius_choice2 (const boost::optional< double > &value)
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
TIGL_EXPORT bool	ValidateChoices () const
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSVessel ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::CTiglRelativelyPositionedComponent
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformationSE3 > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT ChildContainerType	GetChildren (bool recursive)
TIGL_EXPORT boost::optional< const std::string & >	GetParentUID () const
virtual TIGL_EXPORT CTiglPoint	GetRotation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetRotationType () const
virtual TIGL_EXPORT CTiglPoint	GetScaling () const
virtual TIGL_EXPORT ECPACSTranslationType	GetScalingType () const
TIGL_EXPORT TiglSymmetryAxis	GetSymmetryAxis () const override
virtual TIGL_EXPORT CTiglTransformation	GetTransformationMatrix () const
virtual TIGL_EXPORT CTiglPoint	GetTranslation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetTranslationType () const
TIGL_EXPORT void	Reset () const
TIGL_EXPORT void	SetParentUID (const std::string &parentUID)
virtual TIGL_EXPORT void	SetSymmetryAxis (const TiglSymmetryAxis &axis)
virtual TIGL_EXPORT void	SetTransformation (const CCPACSTransformation &transform)
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
virtual TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual bool	IsIndependentGeometry () const
virtual	~ITiglGeometricComponent ()

Protected Member Functions
void	BuildCleanLoft (PNamedShape &cache) const
PNamedShape	BuildLoft () const override
void	SetFaceTraitsFromParams (PNamedShape loft) const
void	SetFaceTraitsFromSegments (PNamedShape loft) const
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Member Functions
void	BuildShapeFromSegments (TopoDS_Shape &loftShape) const
void	BuildShapeFromSimpleParameters (TopoDS_Shape &loftShape) const
void	BuildVesselWire (std::vector< TopoDS_Edge > &edges, BRepBuilderAPI_MakeWire &wire) const
void	BuildVesselWireEllipsoid (BRepBuilderAPI_MakeWire &wire) const
void	BuildVesselWireIsotensoid (BRepBuilderAPI_MakeWire &wire) const
void	BuildVesselWireTorispherical (BRepBuilderAPI_MakeWire &wire) const
CCPACSEllipsoidDome const *	GetEllipsoidDome () const
CCPACSIsotensoidDome const *	GetIsotensoidDome () const
std::string	GetShortShapeName () const
CCPACSTorisphericalDome const *	GetTorisphericalDome () const
void	InvalidateImpl (const boost::optional< std::string > &) const override

Private Attributes
Cache< PNamedShape, CCPACSVessel >	cleanLoft

Static Private Attributes
static const std::string	_vesselTypeException

Additional Inherited Members
Public Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::vector< CTiglRelativelyPositionedComponent * >	ChildContainerType
Protected Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::map< int, int >	FusedElementsContainerType
Protected Attributes inherited from tigl::generated::CPACSVessel
boost::optional< double >	m_burstPressure
	Burst pressure.
boost::optional< double >	m_cylinderLength_choice2
	Inner length of the cylinder.
boost::optional< double >	m_cylinderRadius_choice2
	Inner radius of the cylinder.
boost::optional< std::string >	m_description
	Description.
boost::optional< CPACSDomeType >	m_domeType_choice2
std::string	m_name
	Name.
CPACSVessels *	m_parent
boost::optional< CCPACSFuselageSections >	m_sections_choice1
boost::optional< CCPACSFuselageSegments >	m_segments_choice1
boost::optional< CCPACSVesselStructure >	m_structure
CCPACSTransformation	m_transformation
std::string	m_uID
CTiglUIDManager *	m_uidMgr
boost::optional< CPACSFuelTankVolume >	m_volume
	Volume.
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Constructor & Destructor Documentation

CCPACSVessel()

TIGL_EXPORT tigl::CCPACSVessel::CCPACSVessel ( CCPACSVessels * parent, CTiglUIDManager * uidMgr )

explicit

Member Function Documentation

BuildCleanLoft()

void tigl::CCPACSVessel::BuildCleanLoft ( PNamedShape & cache ) const

protected

BuildLoft()

PNamedShape tigl::CCPACSVessel::BuildLoft ( ) const

overrideprotectedvirtual

Implements tigl::CTiglAbstractGeometricComponent.

BuildShapeFromSegments()

void tigl::CCPACSVessel::BuildShapeFromSegments ( TopoDS_Shape & loftShape ) const

private

BuildShapeFromSimpleParameters()

void tigl::CCPACSVessel::BuildShapeFromSimpleParameters ( TopoDS_Shape & loftShape ) const

private

BuildVesselWire()

void tigl::CCPACSVessel::BuildVesselWire ( std::vector< TopoDS_Edge > & edges, BRepBuilderAPI_MakeWire & wire ) const

private

BuildVesselWireEllipsoid()

void tigl::CCPACSVessel::BuildVesselWireEllipsoid ( BRepBuilderAPI_MakeWire & wire ) const

private

BuildVesselWireIsotensoid()

void tigl::CCPACSVessel::BuildVesselWireIsotensoid ( BRepBuilderAPI_MakeWire & wire ) const

private

BuildVesselWireTorispherical()

void tigl::CCPACSVessel::BuildVesselWireTorispherical ( BRepBuilderAPI_MakeWire & wire ) const

private

GetCircumference()

TIGL_EXPORT double tigl::CCPACSVessel::GetCircumference	(	int	segmentIndex,
		double	eta )

GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSVessel::GetComponentIntent ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSVessel::GetComponentType ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetConfiguration() [1/2]

TIGL_EXPORT CCPACSConfiguration & tigl::CCPACSVessel::GetConfiguration

(

)

GetConfiguration() [2/2]

TIGL_EXPORT CCPACSConfiguration const & tigl::CCPACSVessel::GetConfiguration

(

)

const

GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSVessel::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetEllipsoidDome()

CCPACSEllipsoidDome const * tigl::CCPACSVessel::GetEllipsoidDome ( ) const

private

GetGeometricVolume()

TIGL_EXPORT double tigl::CCPACSVessel::GetGeometricVolume

(

)

GetGuideCurvePoints()

TIGL_EXPORT std::vector< gp_Pnt > tigl::CCPACSVessel::GetGuideCurvePoints

(

)

const

GetGuideCurveSegment() [1/2]

TIGL_EXPORT CCPACSGuideCurve & tigl::CCPACSVessel::GetGuideCurveSegment

(

std::string

uid

)

GetGuideCurveSegment() [2/2]

TIGL_EXPORT const CCPACSGuideCurve & tigl::CCPACSVessel::GetGuideCurveSegment

(

std::string

uid

)

const

GetIsotensoidDome()

CCPACSIsotensoidDome const * tigl::CCPACSVessel::GetIsotensoidDome ( ) const

private

GetSection() [1/4]

TIGL_EXPORT CCPACSFuselageSection & tigl::CCPACSVessel::GetSection

(

const std::string &

sectionUID

)

GetSection() [2/4]

TIGL_EXPORT CCPACSFuselageSection const & tigl::CCPACSVessel::GetSection

(

const std::string &

sectionUID

)

const

GetSection() [3/4]

TIGL_EXPORT CCPACSFuselageSection & tigl::CCPACSVessel::GetSection

(

size_t

index

)

GetSection() [4/4]

TIGL_EXPORT CCPACSFuselageSection const & tigl::CCPACSVessel::GetSection

(

size_t

index

)

const

GetSectionCount()

TIGL_EXPORT size_t tigl::CCPACSVessel::GetSectionCount

(

)

const

GetSectionFace()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSVessel::GetSectionFace

(

const std::string

sectionUID

)

const

GetSegment() [1/3]

TIGL_EXPORT CCPACSFuselageSegment & tigl::CCPACSVessel::GetSegment

(

const size_t

index

)

GetSegment() [2/3]

TIGL_EXPORT const CCPACSFuselageSegment & tigl::CCPACSVessel::GetSegment

(

const size_t

index

)

const

GetSegment() [3/3]

TIGL_EXPORT CCPACSFuselageSegment & tigl::CCPACSVessel::GetSegment

(

std::string

uid

)

GetSegmentCount()

TIGL_EXPORT size_t tigl::CCPACSVessel::GetSegmentCount

(

)

const

GetShortShapeName()

std::string tigl::CCPACSVessel::GetShortShapeName ( ) const

private

GetSurfaceArea()

TIGL_EXPORT double tigl::CCPACSVessel::GetSurfaceArea

(

)

GetTorisphericalDome()

CCPACSTorisphericalDome const * tigl::CCPACSVessel::GetTorisphericalDome ( ) const

private

HasEllipsoidDome()

TIGL_EXPORT bool tigl::CCPACSVessel::HasEllipsoidDome

(

)

const

HasIsotensoidDome()

TIGL_EXPORT bool tigl::CCPACSVessel::HasIsotensoidDome

(

)

const

HasSphericalDome()

TIGL_EXPORT bool tigl::CCPACSVessel::HasSphericalDome

(

)

const

HasTorisphericalDome()

TIGL_EXPORT bool tigl::CCPACSVessel::HasTorisphericalDome

(

)

const

InvalidateImpl()

void tigl::CCPACSVessel::InvalidateImpl ( const boost::optional< std::string > & ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

IsVesselViaDesignParameters()

TIGL_EXPORT bool tigl::CCPACSVessel::IsVesselViaDesignParameters

(

)

const

IsVesselViaSegments()

TIGL_EXPORT bool tigl::CCPACSVessel::IsVesselViaSegments

(

)

const

ReadCPACS()

TIGL_EXPORT void tigl::CCPACSVessel::ReadCPACS ( const TixiDocumentHandle & tixiHandle, const std::string & xpath )

overridevirtual

Reimplemented from tigl::generated::CPACSVessel.

SetFaceTraitsFromParams()

void tigl::CCPACSVessel::SetFaceTraitsFromParams ( PNamedShape loft ) const

protected

SetFaceTraitsFromSegments()

void tigl::CCPACSVessel::SetFaceTraitsFromSegments ( PNamedShape loft ) const

protected

Field Documentation

_vesselTypeException

const std::string tigl::CCPACSVessel::_vesselTypeException

inlinestaticprivate

Initial value:

                                                 =
"This method is only available for vessels with segments. No segment found."

cleanLoft

Cache<PNamedShape, CCPACSVessel> tigl::CCPACSVessel::cleanLoft

private

---

The documentation for this class was generated from the following file:

• CCPACSVessel.h
