Trailing edge device of the wing. More...

#include <CPACSTrailingEdgeDevice.h>

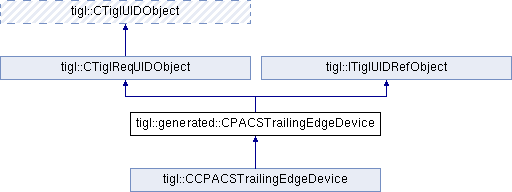

Inheritance diagram for tigl::generated::CPACSTrailingEdgeDevice:

Public Member Functions
TIGL_EXPORT	CPACSTrailingEdgeDevice (CPACSTrailingEdgeDevices parent, CTiglUIDManager uidMgr)
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
virtual TIGL_EXPORT CCPACSControlSurfaceOuterShapeTrailingEdge &	GetOuterShape ()
virtual TIGL_EXPORT const CCPACSControlSurfaceOuterShapeTrailingEdge &	GetOuterShape () const
TIGL_EXPORT CPACSTrailingEdgeDevices *	GetParent ()
TIGL_EXPORT const CPACSTrailingEdgeDevices *	GetParent () const
virtual TIGL_EXPORT const std::string &	GetParentUID () const
virtual TIGL_EXPORT CPACSControlSurfacePath &	GetPath ()
virtual TIGL_EXPORT const CPACSControlSurfacePath &	GetPath () const
virtual TIGL_EXPORT boost::optional< CCPACSWingCSStructure > &	GetStructure ()
virtual TIGL_EXPORT const boost::optional< CCPACSWingCSStructure > &	GetStructure () const
virtual TIGL_EXPORT CCPACSWingCSStructure &	GetStructure (CreateIfNotExistsTag)
virtual TIGL_EXPORT boost::optional< CPACSControlSurfaceTracks > &	GetTracks ()
virtual TIGL_EXPORT const boost::optional< CPACSControlSurfaceTracks > &	GetTracks () const
virtual TIGL_EXPORT CPACSControlSurfaceTracks &	GetTracks (CreateIfNotExistsTag)
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT boost::optional< CCPACSControlSurfaceWingCutOut > &	GetWingCutOut ()
virtual TIGL_EXPORT const boost::optional< CCPACSControlSurfaceWingCutOut > &	GetWingCutOut () const
virtual TIGL_EXPORT CCPACSControlSurfaceWingCutOut &	GetWingCutOut (CreateIfNotExistsTag)
virtual TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath)
virtual TIGL_EXPORT void	RemoveStructure ()
virtual TIGL_EXPORT void	RemoveTracks ()
virtual TIGL_EXPORT void	RemoveWingCutOut ()
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetParentUID (const std::string &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSTrailingEdgeDevice ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default

Protected Attributes
boost::optional< std::string >	m_description
	Description of the trailing edge device.
std::string	m_name
	Name of the trailing edge device.
CCPACSControlSurfaceOuterShapeTrailingEdge	m_outerShape
CPACSTrailingEdgeDevices *	m_parent
std::string	m_parentUID
	UID of the parent of the TED. The parent can either be the uID of the componentSegment of the wing, or the uID of another TED. In the second case this TED is placed within the other TED (double slotted flap). In this way n-slotted TEDs can be created.
CPACSControlSurfacePath	m_path
boost::optional< CCPACSWingCSStructure >	m_structure
boost::optional< CPACSControlSurfaceTracks >	m_tracks
std::string	m_uID
CTiglUIDManager *	m_uidMgr
boost::optional< CCPACSControlSurfaceWingCutOut >	m_wingCutOut

Private Member Functions
	CPACSTrailingEdgeDevice (const CPACSTrailingEdgeDevice &)=delete
	CPACSTrailingEdgeDevice (CPACSTrailingEdgeDevice &&)=delete
TIGL_EXPORT const CTiglUIDObject *	GetNextUIDObject () const final
TIGL_EXPORT void	NotifyUIDChange (const std::string &oldUid, const std::string &newUid) final
CPACSTrailingEdgeDevice &	operator= (const CPACSTrailingEdgeDevice &)=delete
CPACSTrailingEdgeDevice &	operator= (CPACSTrailingEdgeDevice &&)=delete

Additional Inherited Members
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Detailed Description

Trailing edge device of the wing.

A trailingEdgeDevice (TED) is defined via its outerShape relative to the componentSegment. The WingCutOut defines the area of the skin that is removed by the TED. Structure is similar to the wing structure. The mechanical links between the TED and the parent are defined in tracks. The deflection path is described in path. Additional actuators, that are not included into a track, can be defined in actuators. Leading and trailing edge are defined by the outer shape of the wing segments, i.e. the trailing edge of a trailingEdgeDevice is the trailing edge of the wing. This is also valid for kinks that are present in the wing but not explicitly modeled in the control surface. The edges of the control surface within the wing are a straight line in absolute coordinates! Hence, there needs to be a straight connection between the eta-wise outer and inner points of the edge that is within the wing in absolute coordinates.

Constructor & Destructor Documentation

◆ CPACSTrailingEdgeDevice() [1/3]

TIGL_EXPORT tigl::generated::CPACSTrailingEdgeDevice::CPACSTrailingEdgeDevice	(	CPACSTrailingEdgeDevices *	parent,
		CTiglUIDManager *	uidMgr )

◆ ~CPACSTrailingEdgeDevice()

virtual TIGL_EXPORT tigl::generated::CPACSTrailingEdgeDevice::~CPACSTrailingEdgeDevice ( )

virtual

◆ CPACSTrailingEdgeDevice() [2/3]

tigl::generated::CPACSTrailingEdgeDevice::CPACSTrailingEdgeDevice ( const CPACSTrailingEdgeDevice & )

privatedelete

◆ CPACSTrailingEdgeDevice() [3/3]

tigl::generated::CPACSTrailingEdgeDevice::CPACSTrailingEdgeDevice ( CPACSTrailingEdgeDevice && )

privatedelete

Member Function Documentation

◆ GetDescription()

virtual TIGL_EXPORT const boost::optional< std::string > & tigl::generated::CPACSTrailingEdgeDevice::GetDescription ( ) const

virtual

◆ GetName()

virtual TIGL_EXPORT const std::string & tigl::generated::CPACSTrailingEdgeDevice::GetName ( ) const

virtual

◆ GetNextUIDObject()

TIGL_EXPORT const CTiglUIDObject * tigl::generated::CPACSTrailingEdgeDevice::GetNextUIDObject ( ) const

finalprivatevirtual

Implements tigl::ITiglUIDRefObject.

◆ GetNextUIDParent() [1/2]

virtual TIGL_EXPORT CTiglUIDObject * tigl::generated::CPACSTrailingEdgeDevice::GetNextUIDParent ( )

virtual

Implements tigl::CTiglUIDObject.

◆ GetNextUIDParent() [2/2]

virtual TIGL_EXPORT const CTiglUIDObject * tigl::generated::CPACSTrailingEdgeDevice::GetNextUIDParent ( ) const

virtual

Implements tigl::CTiglUIDObject.

◆ GetOuterShape() [1/2]

virtual TIGL_EXPORT CCPACSControlSurfaceOuterShapeTrailingEdge & tigl::generated::CPACSTrailingEdgeDevice::GetOuterShape ( )

virtual

◆ GetOuterShape() [2/2]

virtual TIGL_EXPORT const CCPACSControlSurfaceOuterShapeTrailingEdge & tigl::generated::CPACSTrailingEdgeDevice::GetOuterShape ( ) const

virtual

◆ GetParent() [1/2]

TIGL_EXPORT CPACSTrailingEdgeDevices * tigl::generated::CPACSTrailingEdgeDevice::GetParent ( )

◆ GetParent() [2/2]

TIGL_EXPORT const CPACSTrailingEdgeDevices * tigl::generated::CPACSTrailingEdgeDevice::GetParent ( ) const

◆ GetParentUID()

virtual TIGL_EXPORT const std::string & tigl::generated::CPACSTrailingEdgeDevice::GetParentUID ( ) const

virtual

◆ GetPath() [1/2]

virtual TIGL_EXPORT CPACSControlSurfacePath & tigl::generated::CPACSTrailingEdgeDevice::GetPath ( )

virtual

◆ GetPath() [2/2]

virtual TIGL_EXPORT const CPACSControlSurfacePath & tigl::generated::CPACSTrailingEdgeDevice::GetPath ( ) const

virtual

◆ GetStructure() [1/3]

virtual TIGL_EXPORT boost::optional< CCPACSWingCSStructure > & tigl::generated::CPACSTrailingEdgeDevice::GetStructure ( )

virtual

◆ GetStructure() [2/3]

virtual TIGL_EXPORT const boost::optional< CCPACSWingCSStructure > & tigl::generated::CPACSTrailingEdgeDevice::GetStructure ( ) const

virtual

◆ GetStructure() [3/3]

virtual TIGL_EXPORT CCPACSWingCSStructure & tigl::generated::CPACSTrailingEdgeDevice::GetStructure ( CreateIfNotExistsTag )

virtual

◆ GetTracks() [1/3]

virtual TIGL_EXPORT boost::optional< CPACSControlSurfaceTracks > & tigl::generated::CPACSTrailingEdgeDevice::GetTracks ( )

virtual

◆ GetTracks() [2/3]

virtual TIGL_EXPORT const boost::optional< CPACSControlSurfaceTracks > & tigl::generated::CPACSTrailingEdgeDevice::GetTracks ( ) const

virtual

◆ GetTracks() [3/3]

virtual TIGL_EXPORT CPACSControlSurfaceTracks & tigl::generated::CPACSTrailingEdgeDevice::GetTracks ( CreateIfNotExistsTag )

virtual

◆ GetUID()

virtual TIGL_EXPORT const std::string & tigl::generated::CPACSTrailingEdgeDevice::GetUID ( ) const

virtual

Implements tigl::CTiglReqUIDObject.

◆ GetUIDManager() [1/2]

TIGL_EXPORT CTiglUIDManager & tigl::generated::CPACSTrailingEdgeDevice::GetUIDManager ( )

virtual

Implements tigl::CTiglUIDObject.

◆ GetUIDManager() [2/2]

TIGL_EXPORT const CTiglUIDManager & tigl::generated::CPACSTrailingEdgeDevice::GetUIDManager ( ) const

virtual

Implements tigl::CTiglUIDObject.

◆ GetWingCutOut() [1/3]

virtual TIGL_EXPORT boost::optional< CCPACSControlSurfaceWingCutOut > & tigl::generated::CPACSTrailingEdgeDevice::GetWingCutOut ( )

virtual

◆ GetWingCutOut() [2/3]

virtual TIGL_EXPORT const boost::optional< CCPACSControlSurfaceWingCutOut > & tigl::generated::CPACSTrailingEdgeDevice::GetWingCutOut ( ) const

virtual

◆ GetWingCutOut() [3/3]

virtual TIGL_EXPORT CCPACSControlSurfaceWingCutOut & tigl::generated::CPACSTrailingEdgeDevice::GetWingCutOut ( CreateIfNotExistsTag )

virtual

◆ NotifyUIDChange()

TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::NotifyUIDChange	(	const std::string &	oldUid,
		const std::string &	newUid )

finalprivatevirtual

Implements tigl::ITiglUIDRefObject.

◆ operator=() [1/2]

CPACSTrailingEdgeDevice & tigl::generated::CPACSTrailingEdgeDevice::operator= ( const CPACSTrailingEdgeDevice & )

privatedelete

◆ operator=() [2/2]

CPACSTrailingEdgeDevice & tigl::generated::CPACSTrailingEdgeDevice::operator= ( CPACSTrailingEdgeDevice && )

privatedelete

◆ ReadCPACS()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::ReadCPACS	(	const TixiDocumentHandle &	tixiHandle,
		const std::string &	xpath )

virtual

Reimplemented in tigl::CCPACSTrailingEdgeDevice.

◆ RemoveStructure()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::RemoveStructure ( )

virtual

◆ RemoveTracks()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::RemoveTracks ( )

virtual

◆ RemoveWingCutOut()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::RemoveWingCutOut ( )

virtual

◆ SetDescription()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::SetDescription ( const boost::optional< std::string > & value )

virtual

◆ SetName()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::SetName ( const std::string & value )

virtual

◆ SetParentUID()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::SetParentUID ( const std::string & value )

virtual

◆ SetUID()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::SetUID ( const std::string & value )

virtual

◆ WriteCPACS()

virtual TIGL_EXPORT void tigl::generated::CPACSTrailingEdgeDevice::WriteCPACS	(	const TixiDocumentHandle &	tixiHandle,
		const std::string &	xpath ) const

virtual

Field Documentation

◆ m_description

boost::optional<std::string> tigl::generated::CPACSTrailingEdgeDevice::m_description

protected

Description of the trailing edge device.

◆ m_name

std::string tigl::generated::CPACSTrailingEdgeDevice::m_name

protected

Name of the trailing edge device.

◆ m_outerShape

CCPACSControlSurfaceOuterShapeTrailingEdge tigl::generated::CPACSTrailingEdgeDevice::m_outerShape

protected

◆ m_parent

CPACSTrailingEdgeDevices* tigl::generated::CPACSTrailingEdgeDevice::m_parent

protected

◆ m_parentUID

std::string tigl::generated::CPACSTrailingEdgeDevice::m_parentUID

protected

UID of the parent of the TED. The parent can either be the uID of the componentSegment of the wing, or the uID of another TED. In the second case this TED is placed within the other TED (double slotted flap). In this way n-slotted TEDs can be created.

◆ m_path

CPACSControlSurfacePath tigl::generated::CPACSTrailingEdgeDevice::m_path

protected

◆ m_structure

boost::optional<CCPACSWingCSStructure> tigl::generated::CPACSTrailingEdgeDevice::m_structure

protected

◆ m_tracks

boost::optional<CPACSControlSurfaceTracks> tigl::generated::CPACSTrailingEdgeDevice::m_tracks

protected

◆ m_uID

std::string tigl::generated::CPACSTrailingEdgeDevice::m_uID

protected

◆ m_uidMgr

CTiglUIDManager* tigl::generated::CPACSTrailingEdgeDevice::m_uidMgr

protected

◆ m_wingCutOut

boost::optional<CCPACSControlSurfaceWingCutOut> tigl::generated::CPACSTrailingEdgeDevice::m_wingCutOut

protected

The documentation for this class was generated from the following file:

CPACSTrailingEdgeDevice.h
