tigl::CCPACSWingSegment Class Reference

#include <CCPACSWingSegment.h>

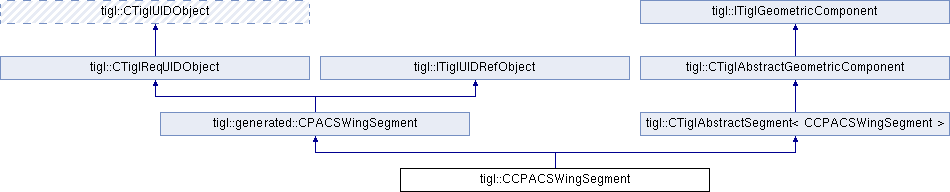

Inheritance diagram for tigl::CCPACSWingSegment:

Data Structures
struct	ChordSurfaceCache
struct	SurfaceCache

Public Member Functions
TIGL_EXPORT	CCPACSWingSegment (CCPACSWingSegments *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT gp_Pnt	GetChordNormal (double eta, double xsi) const
TIGL_EXPORT gp_Pnt	GetChordPoint (double eta, double xsi, TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM) const
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT void	GetEtaXsi (gp_Pnt pnt, double &eta, double &xsi, gp_Pnt &projectedPoint, TiglGetPointBehavior behavior) const
TIGL_EXPORT TopoDS_Shape	GetInnerClosure (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT int	GetInnerConnectedSegmentCount () const
TIGL_EXPORT int	GetInnerConnectedSegmentIndex (int n) const
TIGL_EXPORT CTiglWingConnection &	GetInnerConnection ()
TIGL_EXPORT const CTiglWingConnection &	GetInnerConnection () const
TIGL_EXPORT gp_Pnt	GetInnerProfilePoint (double xsi) const
TIGL_EXPORT int	GetInnerSectionElementIndex () const
TIGL_EXPORT const std::string &	GetInnerSectionElementUID () const
TIGL_EXPORT int	GetInnerSectionIndex () const
TIGL_EXPORT const std::string &	GetInnerSectionUID () const
TIGL_EXPORT TopoDS_Wire	GetInnerWire (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const override
TIGL_EXPORT bool	GetIsOnTop (gp_Pnt pnt) const
TIGL_EXPORT PNamedShape	GetLoft (TiglShapeModifier mod) const
TIGL_EXPORT gp_Pnt	GetLowerPoint (double eta, double xsi, TiglGetPointBehavior getPointBehavior) const
TIGL_EXPORT TopoDS_Shape	GetLowerShape (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT TopoDS_Shape	GetOuterClosure (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT int	GetOuterConnectedSegmentCount () const
TIGL_EXPORT int	GetOuterConnectedSegmentIndex (int n) const
TIGL_EXPORT CTiglWingConnection &	GetOuterConnection ()
TIGL_EXPORT const CTiglWingConnection &	GetOuterConnection () const
TIGL_EXPORT gp_Pnt	GetOuterProfilePoint (double xsi) const
TIGL_EXPORT int	GetOuterSectionElementIndex () const
TIGL_EXPORT const std::string &	GetOuterSectionElementUID () const
TIGL_EXPORT int	GetOuterSectionIndex () const
TIGL_EXPORT const std::string &	GetOuterSectionUID () const
TIGL_EXPORT TopoDS_Wire	GetOuterWire (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT CTiglTransformation	GetParentTransformation () const
TIGL_EXPORT gp_Pnt	GetPoint (double eta, double xsi, bool fromUpper, TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglGetPointBehavior behavior=asParameterOnSurface) const
TIGL_EXPORT gp_Pnt	GetPointDirection (double eta, double xsi, double dirx, double diry, double dirz, bool fromUpper, double &deviation) const
TIGL_EXPORT double	GetReferenceArea (TiglSymmetryAxis symPlane) const
TIGL_EXPORT double	GetSurfaceArea () const
TIGL_EXPORT double	GetSurfaceArea (bool fromUpper, double eta1, double xsi1, double eta2, double xsi2, double eta3, double xsi3, double eta4, double xsi4) const
TIGL_EXPORT TopoDS_Shape	GetTrailingEdgeShape (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT gp_Pnt	GetUpperPoint (double eta, double xsi, TiglGetPointBehavior getPointBehavior) const
TIGL_EXPORT TopoDS_Shape	GetUpperShape (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM, TiglShapeModifier mod=UNMODIFIED_SHAPE) const
TIGL_EXPORT double	GetVolume ()
TIGL_EXPORT	Handle (Geom_Surface) GetLowerSurface(TiglCoordinateSystem referenceCS
TIGL_EXPORT	Handle (Geom_Surface) GetUpperSurface(TiglCoordinateSystem referenceCS
TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &segmentXPath) override
TIGL_EXPORT void	SetFromElementUID (const std::string &value) override
TIGL_EXPORT void	SetToElementUID (const std::string &value) override
TIGL_EXPORT	~CCPACSWingSegment () override
Public Member Functions inherited from tigl::generated::CPACSWingSegment
TIGL_EXPORT	CPACSWingSegment (CCPACSWingSegments *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT const std::string &	GetFromElementUID () const
virtual TIGL_EXPORT boost::optional< CCPACSGuideCurves > &	GetGuideCurves ()
virtual TIGL_EXPORT const boost::optional< CCPACSGuideCurves > &	GetGuideCurves () const
virtual TIGL_EXPORT CCPACSGuideCurves &	GetGuideCurves (CreateIfNotExistsTag)
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CCPACSWingSegments *	GetParent ()
TIGL_EXPORT const CCPACSWingSegments *	GetParent () const
virtual TIGL_EXPORT const std::string &	GetToElementUID () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	RemoveGuideCurves ()
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSWingSegment ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default
Public Member Functions inherited from tigl::CTiglAbstractSegment< CCPACSWingSegment >
TIGL_EXPORT	CTiglAbstractSegment (const std::vector< std::unique_ptr< CCPACSWingSegment > > &segments, const CTiglAbstractGeometricComponent *parentComponent)
TiglContinuity	GetContinuity () const
int	GetSegmentIndex () const
TiglSymmetryAxis	GetSymmetryAxis () const override
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual bool	IsIndependentGeometry () const
virtual	~ITiglGeometricComponent ()

Data Fields
TIGL_EXPORT TiglShapeModifier	mod = UNMODIFIED_SHAPE) const

Protected Member Functions
PNamedShape	BuildLoft () const override
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Member Functions
const CTiglPointTranslator &	ChordFace (TiglCoordinateSystem referenceCS=GLOBAL_COORDINATE_SYSTEM) const
void	ComputeArea (double &cache) const
void	ComputeVolume (double &cache) const
void	etaXsiToUV (bool isFromUpper, double eta, double xsi, double &u, double &v) const
std::string	GetShortShapeName () const
void	InvalidateImpl (const boost::optional< std::string > &source) const override
void	MakeChordSurfaces (ChordSurfaceCache &cache) const
void	MakeSurfaces (SurfaceCache &cache) const
void	uvToEtaXsi (bool isFromUpper, double u, double v, double &eta, double &xsi) const

Private Attributes
Cache< double, CCPACSWingSegment >	areaCache
Cache< ChordSurfaceCache, CCPACSWingSegment >	chordSurfaceCache
CTiglWingConnection	innerConnection
bool	loftLinearly = false
std::unique_ptr< IGuideCurveBuilder >	m_guideCurveBuilder
CTiglWingConnection	outerConnection
Cache< SurfaceCache, CCPACSWingSegment >	surfaceCache
Cache< double, CCPACSWingSegment >	volumeCache

Additional Inherited Members
Protected Attributes inherited from tigl::generated::CPACSWingSegment
boost::optional< std::string >	m_description
	Description of the wing segment.
std::string	m_fromElementUID
	Reference to the element from which the segment shall start.
boost::optional< CCPACSGuideCurves >	m_guideCurves
	Optional and additional guidecurves to shape the outer geometry.
std::string	m_name
	Name of wing the wing segment.
CCPACSWingSegments *	m_parent
std::string	m_toElementUID
	Reference to the element at which the segment shall end.
std::string	m_uID
CTiglUIDManager *	m_uidMgr
Protected Attributes inherited from tigl::CTiglAbstractSegment< CCPACSWingSegment >
TiglContinuity	_continuity
const CTiglAbstractGeometricComponent *	_parentComponent
const std::vector< std::unique_ptr< CCPACSWingSegment > > &	_segments
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Constructor & Destructor Documentation

CCPACSWingSegment()

TIGL_EXPORT tigl::CCPACSWingSegment::CCPACSWingSegment	(	CCPACSWingSegments *	parent,
		CTiglUIDManager *	uidMgr )

~CCPACSWingSegment()

TIGL_EXPORT tigl::CCPACSWingSegment::~CCPACSWingSegment ( )

override

Member Function Documentation

BuildLoft()

PNamedShape tigl::CCPACSWingSegment::BuildLoft ( ) const

overrideprotectedvirtual

Implements tigl::CTiglAbstractGeometricComponent.

ChordFace()

const CTiglPointTranslator & tigl::CCPACSWingSegment::ChordFace ( TiglCoordinateSystem referenceCS = GLOBAL_COORDINATE_SYSTEM ) const

private

ComputeArea()

void tigl::CCPACSWingSegment::ComputeArea ( double & cache ) const

private

ComputeVolume()

void tigl::CCPACSWingSegment::ComputeVolume ( double & cache ) const

private

etaXsiToUV()

void tigl::CCPACSWingSegment::etaXsiToUV ( bool isFromUpper, double eta, double xsi, double & u, double & v ) const

private

GetChordNormal()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetChordNormal	(	double	eta,
		double	xsi ) const

GetChordPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetChordPoint	(	double	eta,
		double	xsi,
		TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM ) const

GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSWingSegment::GetComponentIntent ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSWingSegment::GetComponentType ( ) const

inlineoverridevirtual

Implements tigl::ITiglGeometricComponent.

GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSWingSegment::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetEtaXsi()

TIGL_EXPORT void tigl::CCPACSWingSegment::GetEtaXsi	(	gp_Pnt	pnt,
		double &	eta,
		double &	xsi,
		gp_Pnt &	projectedPoint,
		TiglGetPointBehavior	behavior ) const

GetInnerClosure()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingSegment::GetInnerClosure	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetInnerConnectedSegmentCount()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetInnerConnectedSegmentCount

(

)

const

GetInnerConnectedSegmentIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetInnerConnectedSegmentIndex

(

int

n

)

const

GetInnerConnection() [1/2]

TIGL_EXPORT CTiglWingConnection & tigl::CCPACSWingSegment::GetInnerConnection

(

)

GetInnerConnection() [2/2]

TIGL_EXPORT const CTiglWingConnection & tigl::CCPACSWingSegment::GetInnerConnection

(

)

const

GetInnerProfilePoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetInnerProfilePoint

(

double

xsi

)

const

GetInnerSectionElementIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetInnerSectionElementIndex

(

)

const

GetInnerSectionElementUID()

TIGL_EXPORT const std::string & tigl::CCPACSWingSegment::GetInnerSectionElementUID

(

)

const

GetInnerSectionIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetInnerSectionIndex

(

)

const

GetInnerSectionUID()

TIGL_EXPORT const std::string & tigl::CCPACSWingSegment::GetInnerSectionUID

(

)

const

GetInnerWire()

TIGL_EXPORT TopoDS_Wire tigl::CCPACSWingSegment::GetInnerWire	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetIsOn()

TIGL_EXPORT bool tigl::CCPACSWingSegment::GetIsOn ( const gp_Pnt & pnt ) const

overridevirtual

Reimplemented from tigl::CTiglAbstractGeometricComponent.

GetIsOnTop()

TIGL_EXPORT bool tigl::CCPACSWingSegment::GetIsOnTop

(

gp_Pnt

pnt

)

const

GetLoft()

TIGL_EXPORT PNamedShape tigl::CCPACSWingSegment::GetLoft

(

TiglShapeModifier

mod

)

const

GetLowerPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetLowerPoint	(	double	eta,
		double	xsi,
		TiglGetPointBehavior	getPointBehavior ) const

GetLowerShape()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingSegment::GetLowerShape	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetOuterClosure()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingSegment::GetOuterClosure	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetOuterConnectedSegmentCount()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetOuterConnectedSegmentCount

(

)

const

GetOuterConnectedSegmentIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetOuterConnectedSegmentIndex

(

int

n

)

const

GetOuterConnection() [1/2]

TIGL_EXPORT CTiglWingConnection & tigl::CCPACSWingSegment::GetOuterConnection

(

)

GetOuterConnection() [2/2]

TIGL_EXPORT const CTiglWingConnection & tigl::CCPACSWingSegment::GetOuterConnection

(

)

const

GetOuterProfilePoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetOuterProfilePoint

(

double

xsi

)

const

GetOuterSectionElementIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetOuterSectionElementIndex

(

)

const

GetOuterSectionElementUID()

TIGL_EXPORT const std::string & tigl::CCPACSWingSegment::GetOuterSectionElementUID

(

)

const

GetOuterSectionIndex()

TIGL_EXPORT int tigl::CCPACSWingSegment::GetOuterSectionIndex

(

)

const

GetOuterSectionUID()

TIGL_EXPORT const std::string & tigl::CCPACSWingSegment::GetOuterSectionUID

(

)

const

GetOuterWire()

TIGL_EXPORT TopoDS_Wire tigl::CCPACSWingSegment::GetOuterWire	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetParentTransformation()

TIGL_EXPORT CTiglTransformation tigl::CCPACSWingSegment::GetParentTransformation

(

)

const

GetPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetPoint	(	double	eta,
		double	xsi,
		bool	fromUpper,
		TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglGetPointBehavior	behavior = asParameterOnSurface ) const

GetPointDirection()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetPointDirection	(	double	eta,
		double	xsi,
		double	dirx,
		double	diry,
		double	dirz,
		bool	fromUpper,
		double &	deviation ) const

GetReferenceArea()

TIGL_EXPORT double tigl::CCPACSWingSegment::GetReferenceArea

(

TiglSymmetryAxis

symPlane

)

const

GetShortShapeName()

std::string tigl::CCPACSWingSegment::GetShortShapeName ( ) const

private

GetSurfaceArea() [1/2]

TIGL_EXPORT double tigl::CCPACSWingSegment::GetSurfaceArea

(

)

const

GetSurfaceArea() [2/2]

TIGL_EXPORT double tigl::CCPACSWingSegment::GetSurfaceArea	(	bool	fromUpper,
		double	eta1,
		double	xsi1,
		double	eta2,
		double	xsi2,
		double	eta3,
		double	xsi3,
		double	eta4,
		double	xsi4 ) const

GetTrailingEdgeShape()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingSegment::GetTrailingEdgeShape	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetUpperPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSWingSegment::GetUpperPoint	(	double	eta,
		double	xsi,
		TiglGetPointBehavior	getPointBehavior ) const

GetUpperShape()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingSegment::GetUpperShape	(	TiglCoordinateSystem	referenceCS = GLOBAL_COORDINATE_SYSTEM,
		TiglShapeModifier	mod = UNMODIFIED_SHAPE ) const

GetVolume()

TIGL_EXPORT double tigl::CCPACSWingSegment::GetVolume

(

)

Handle() [1/2]

TIGL_EXPORT tigl::CCPACSWingSegment::Handle

(

Geom_Surface

)

Handle() [2/2]

TIGL_EXPORT tigl::CCPACSWingSegment::Handle

(

Geom_Surface

)

InvalidateImpl()

void tigl::CCPACSWingSegment::InvalidateImpl ( const boost::optional< std::string > & source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

MakeChordSurfaces()

void tigl::CCPACSWingSegment::MakeChordSurfaces ( ChordSurfaceCache & cache ) const

private

MakeSurfaces()

void tigl::CCPACSWingSegment::MakeSurfaces ( SurfaceCache & cache ) const

private

ReadCPACS()

TIGL_EXPORT void tigl::CCPACSWingSegment::ReadCPACS ( const TixiDocumentHandle & tixiHandle, const std::string & segmentXPath )

overridevirtual

Reimplemented from tigl::generated::CPACSWingSegment.

SetFromElementUID()

TIGL_EXPORT void tigl::CCPACSWingSegment::SetFromElementUID ( const std::string & value )

overridevirtual

Reimplemented from tigl::generated::CPACSWingSegment.

SetToElementUID()

TIGL_EXPORT void tigl::CCPACSWingSegment::SetToElementUID ( const std::string & value )

overridevirtual

Reimplemented from tigl::generated::CPACSWingSegment.

uvToEtaXsi()

void tigl::CCPACSWingSegment::uvToEtaXsi ( bool isFromUpper, double u, double v, double & eta, double & xsi ) const

private

Field Documentation

areaCache

Cache<double, CCPACSWingSegment> tigl::CCPACSWingSegment::areaCache

private

chordSurfaceCache

Cache<ChordSurfaceCache, CCPACSWingSegment> tigl::CCPACSWingSegment::chordSurfaceCache

private

innerConnection

CTiglWingConnection tigl::CCPACSWingSegment::innerConnection

private

Inner segment connection (root)

loftLinearly

bool tigl::CCPACSWingSegment::loftLinearly = false

private

Set to true to speed up lofting of the segment. This removes the dependency on the fuselage loft at the price of a nonsmooth fuselage

m_guideCurveBuilder

std::unique_ptr<IGuideCurveBuilder> tigl::CCPACSWingSegment::m_guideCurveBuilder

private

mod

TIGL_EXPORT TiglShapeModifier tigl::CCPACSWingSegment::mod = UNMODIFIED_SHAPE) const

outerConnection

CTiglWingConnection tigl::CCPACSWingSegment::outerConnection

private

Outer segment connection (tip)

surfaceCache

Cache<SurfaceCache, CCPACSWingSegment> tigl::CCPACSWingSegment::surfaceCache

private

volumeCache

Cache<double, CCPACSWingSegment> tigl::CCPACSWingSegment::volumeCache

private

---

The documentation for this class was generated from the following file:

• CCPACSWingSegment.h
