#include <CCPACSWingCell.h>

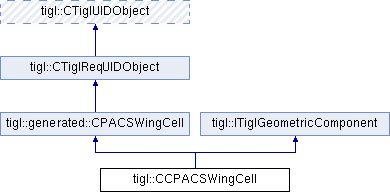

Inheritance diagram for tigl::CCPACSWingCell:

Data Structures
struct	EtaXsiCache
struct	GeometryCache

Public Member Functions
TIGL_EXPORT	CCPACSWingCell (CCPACSWingCells parentCells, CTiglUIDManager uidMgr)
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT EtaXsi	GetLeadingEdgeInnerPoint () const
TIGL_EXPORT EtaXsi	GetLeadingEdgeOuterPoint () const
TIGL_EXPORT PNamedShape	GetLoft () const override
TIGL_EXPORT CCPACSMaterialDefinition &	GetMaterial ()
TIGL_EXPORT const CCPACSMaterialDefinition &	GetMaterial () const
TIGL_EXPORT TopoDS_Shape	GetSkinGeometry (TiglCoordinateSystem cs=GLOBAL_COORDINATE_SYSTEM) const
TIGL_EXPORT EtaXsi	GetTrailingEdgeInnerPoint () const
TIGL_EXPORT EtaXsi	GetTrailingEdgeOuterPoint () const
TIGL_EXPORT bool	IsConvex () const
TIGL_EXPORT bool	IsInside (double eta, double xsi) const
TIGL_EXPORT bool	IsPartOfCell (TopoDS_Edge)
TIGL_EXPORT bool	IsPartOfCell (TopoDS_Face)
TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &cellXPath) override
TIGL_EXPORT void	SetInnerBorderRib (const std::string &ribDefinitionUID, int ribNumber)
TIGL_EXPORT void	SetLeadingEdgeInnerPoint (double eta, double xsi)
TIGL_EXPORT void	SetLeadingEdgeOuterPoint (double eta, double xsi)
TIGL_EXPORT void	SetLeadingEdgeSpar (const std::string &sparUID)
TIGL_EXPORT void	SetOuterBorderRib (const std::string &ribDefinitionUID, int ribNumber)
TIGL_EXPORT void	SetTrailingEdgeInnerPoint (double eta, double xsi)
TIGL_EXPORT void	SetTrailingEdgeOuterPoint (double eta, double xsi)
TIGL_EXPORT void	SetTrailingEdgeSpar (const std::string &sparUID)
TIGL_EXPORT	~CCPACSWingCell () override
Public Member Functions inherited from tigl::generated::CPACSWingCell
TIGL_EXPORT	CPACSWingCell (CCPACSWingCells parent, CTiglUIDManager uidMgr)
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CCPACSWingCells *	GetParent ()
TIGL_EXPORT const CCPACSWingCells *	GetParent () const
virtual TIGL_EXPORT CCPACSWingCellPositionSpanwise &	GetPositioningInnerBorder ()
virtual TIGL_EXPORT const CCPACSWingCellPositionSpanwise &	GetPositioningInnerBorder () const
virtual TIGL_EXPORT CCPACSWingCellPositionChordwise &	GetPositioningLeadingEdge ()
virtual TIGL_EXPORT const CCPACSWingCellPositionChordwise &	GetPositioningLeadingEdge () const
virtual TIGL_EXPORT CCPACSWingCellPositionSpanwise &	GetPositioningOuterBorder ()
virtual TIGL_EXPORT const CCPACSWingCellPositionSpanwise &	GetPositioningOuterBorder () const
virtual TIGL_EXPORT CCPACSWingCellPositionChordwise &	GetPositioningTrailingEdge ()
virtual TIGL_EXPORT const CCPACSWingCellPositionChordwise &	GetPositioningTrailingEdge () const
virtual TIGL_EXPORT CPACSWingSkin &	GetSkin ()
virtual TIGL_EXPORT const CPACSWingSkin &	GetSkin () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSWingCell ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual bool	IsIndependentGeometry () const
virtual	~ITiglGeometricComponent ()

Private Types
enum class	ChordWiseBorder { LE , TE }
enum class	SpanWiseBorder { Inner , Outer }

Private Member Functions
void	BuildSkinGeometry (GeometryCache &cache) const
EtaXsi	computePositioningEtaXsi (const CCPACSWingCellPositionSpanwise &spanwisePos, const CCPACSWingCellPositionChordwise &chordwisePos, bool inner, bool front) const
TopoDS_Shape	CutChordwise (GeometryCache &cache, TopoDS_Shape const &loftShape, ChordWiseBorder border, CCPACSWingCellPositionChordwise const &positioning, gp_Dir const &zRefDir, double tol=5e-3) const
	CutChordwise cuts the loftShape in chordwise direction Depending on the enum border, it can be a leading edge or trailing edge border. This function is called by BuildSKinGeometry to cut the loftSurface in chordwise direction.
TopoDS_Shape	CutSpanwise (GeometryCache &cache, TopoDS_Shape const &loftShape, SpanWiseBorder border, CCPACSWingCellPositionSpanwise const &positioning, gp_Dir const &zRefDir, double tol=5e-3) const
	CutSpanwise cuts the loftShape in spanwise direction Depending on the enum border, it can be a inner or outer border. This function is called by BuildSKinGeometry to cut the loftSurface in spanwise direction.
TopoDS_Shape	GetRibCutGeometry (std::pair< std::string, int > ribUidAndIndex) const
void	InvalidateImpl (const boost::optional< std::string > &source) const override
template<class T>
bool	IsPartOfCellImpl (T t)
void	Reset ()
void	TrimChordwise (GeometryCache &cache, ChordWiseBorder border, CCPACSWingCellPositionChordwise const &positioning, double tol=5e-3) const
	TrimChordwise trims the wing skin in chordwise direction Depending on the enum border, it can be a leading edge or trailing edge border. This function is called by BuildSkinGeometry to trim the wing shape in chordwise direction.
void	TrimSpanwise (GeometryCache &cache, SpanWiseBorder border, CCPACSWingCellPositionSpanwise const &positioning, double tol=5e-3) const
	TrimSpanwise trims the wing skin in spanwise direction Depending on the enum border, it can be a inner or outer border. This function is called by BuildSkinGeometry to trim the wing shape in spanwise direction.
void	UpdateEtaXsiValues (EtaXsiCache &cache) const

Private Attributes
Cache< EtaXsiCache, CCPACSWingCell >	m_etaXsiCache
Cache< GeometryCache, CCPACSWingCell >	m_geometryCache

Additional Inherited Members
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default
Protected Attributes inherited from tigl::generated::CPACSWingCell
CCPACSWingCells *	m_parent
CCPACSWingCellPositionSpanwise	m_positioningInnerBorder
CCPACSWingCellPositionChordwise	m_positioningLeadingEdge
CCPACSWingCellPositionSpanwise	m_positioningOuterBorder
CCPACSWingCellPositionChordwise	m_positioningTrailingEdge
CPACSWingSkin	m_skin
std::string	m_uID
CTiglUIDManager *	m_uidMgr

Member Enumeration Documentation

◆ ChordWiseBorder

enum class tigl::CCPACSWingCell::ChordWiseBorder

strongprivate

Enumerator
LE
TE

◆ SpanWiseBorder

enum class tigl::CCPACSWingCell::SpanWiseBorder

strongprivate

Enumerator
Inner
Outer

Constructor & Destructor Documentation

◆ CCPACSWingCell()

TIGL_EXPORT tigl::CCPACSWingCell::CCPACSWingCell	(	CCPACSWingCells *	parentCells,
		CTiglUIDManager *	uidMgr )

◆ ~CCPACSWingCell()

TIGL_EXPORT tigl::CCPACSWingCell::~CCPACSWingCell ( )

override

Member Function Documentation

◆ BuildSkinGeometry()

void tigl::CCPACSWingCell::BuildSkinGeometry ( GeometryCache & cache ) const

private

◆ computePositioningEtaXsi()

EtaXsi tigl::CCPACSWingCell::computePositioningEtaXsi	(	const CCPACSWingCellPositionSpanwise &	spanwisePos,
		const CCPACSWingCellPositionChordwise &	chordwisePos,
		bool	inner,
		bool	front ) const

private

◆ CutChordwise()

TopoDS_Shape tigl::CCPACSWingCell::CutChordwise	(	GeometryCache &	cache,
		TopoDS_Shape const &	loftShape,
		ChordWiseBorder	border,
		CCPACSWingCellPositionChordwise const &	positioning,
		gp_Dir const &	zRefDir,
		double	tol = 5e-3 ) const

private

CutChordwise cuts the loftShape in chordwise direction Depending on the enum border, it can be a leading edge or trailing edge border. This function is called by BuildSKinGeometry to cut the loftSurface in chordwise direction.

This function is used, if the borders of the cell are defined relative to the chordface via eta xsi coordinates or by referencing a spar

Parameters

cache	The shape cache of the wing cell
loftShape	the shape of the wing skin
border	a ChordWiseBorder enum, denoting whether it is a leading edge or trailing edge border
positioning	CPACS definition of the border
zRefDir	a reference direction orthogonal to the chordface
tol	a tolerance

Returns: The loftShape cut at the chordwise border

◆ CutSpanwise()

TopoDS_Shape tigl::CCPACSWingCell::CutSpanwise	(	GeometryCache &	cache,
		TopoDS_Shape const &	loftShape,
		SpanWiseBorder	border,
		CCPACSWingCellPositionSpanwise const &	positioning,
		gp_Dir const &	zRefDir,
		double	tol = 5e-3 ) const

private

CutSpanwise cuts the loftShape in spanwise direction Depending on the enum border, it can be a inner or outer border. This function is called by BuildSKinGeometry to cut the loftSurface in spanwise direction.

This function is used, if the borders of the cell are defined relative to the chordface via eta xsi coordinates or by referencing a rib

Parameters

cache	The shape cache of the wing cell
loftShape	the shape of the wing skin
border	a SpanWiseBorder enum, denoting whether it is an inner or outer border
positioning	CPACS definition of the border
zRefDir	a reference direction orthogonal to the chordface
tol	a tolerance

Returns: The loftShape cut at the spanwise border

◆ GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSWingCell::GetComponentIntent ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

◆ GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSWingCell::GetComponentType ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

◆ GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSWingCell::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

◆ GetLeadingEdgeInnerPoint()

TIGL_EXPORT EtaXsi tigl::CCPACSWingCell::GetLeadingEdgeInnerPoint ( ) const

◆ GetLeadingEdgeOuterPoint()

TIGL_EXPORT EtaXsi tigl::CCPACSWingCell::GetLeadingEdgeOuterPoint ( ) const

◆ GetLoft()

TIGL_EXPORT PNamedShape tigl::CCPACSWingCell::GetLoft ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

◆ GetMaterial() [1/2]

TIGL_EXPORT CCPACSMaterialDefinition & tigl::CCPACSWingCell::GetMaterial ( )

◆ GetMaterial() [2/2]

TIGL_EXPORT const CCPACSMaterialDefinition & tigl::CCPACSWingCell::GetMaterial ( ) const

◆ GetRibCutGeometry()

TopoDS_Shape tigl::CCPACSWingCell::GetRibCutGeometry ( std::pair< std::string, int > ribUidAndIndex ) const

private

◆ GetSkinGeometry()

TIGL_EXPORT TopoDS_Shape tigl::CCPACSWingCell::GetSkinGeometry ( TiglCoordinateSystem cs = GLOBAL_COORDINATE_SYSTEM ) const

◆ GetTrailingEdgeInnerPoint()

TIGL_EXPORT EtaXsi tigl::CCPACSWingCell::GetTrailingEdgeInnerPoint ( ) const

◆ GetTrailingEdgeOuterPoint()

TIGL_EXPORT EtaXsi tigl::CCPACSWingCell::GetTrailingEdgeOuterPoint ( ) const

◆ InvalidateImpl()

void tigl::CCPACSWingCell::InvalidateImpl ( const boost::optional< std::string > & source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

◆ IsConvex()

TIGL_EXPORT bool tigl::CCPACSWingCell::IsConvex ( ) const

◆ IsInside()

TIGL_EXPORT bool tigl::CCPACSWingCell::IsInside	(	double	eta,
		double	xsi ) const

◆ IsPartOfCell() [1/2]

TIGL_EXPORT bool tigl::CCPACSWingCell::IsPartOfCell ( TopoDS_Edge )

◆ IsPartOfCell() [2/2]

TIGL_EXPORT bool tigl::CCPACSWingCell::IsPartOfCell ( TopoDS_Face )

◆ IsPartOfCellImpl()

template<class T>

bool tigl::CCPACSWingCell::IsPartOfCellImpl ( T t )

private

◆ ReadCPACS()

TIGL_EXPORT void tigl::CCPACSWingCell::ReadCPACS	(	const TixiDocumentHandle &	tixiHandle,
		const std::string &	cellXPath )

overridevirtual

Reimplemented from tigl::generated::CPACSWingCell.

◆ Reset()

void tigl::CCPACSWingCell::Reset ( )

private

◆ SetInnerBorderRib()

TIGL_EXPORT void tigl::CCPACSWingCell::SetInnerBorderRib	(	const std::string &	ribDefinitionUID,
		int	ribNumber )

◆ SetLeadingEdgeInnerPoint()

TIGL_EXPORT void tigl::CCPACSWingCell::SetLeadingEdgeInnerPoint	(	double	eta,
		double	xsi )

◆ SetLeadingEdgeOuterPoint()

TIGL_EXPORT void tigl::CCPACSWingCell::SetLeadingEdgeOuterPoint	(	double	eta,
		double	xsi )

◆ SetLeadingEdgeSpar()

TIGL_EXPORT void tigl::CCPACSWingCell::SetLeadingEdgeSpar ( const std::string & sparUID )

◆ SetOuterBorderRib()

TIGL_EXPORT void tigl::CCPACSWingCell::SetOuterBorderRib	(	const std::string &	ribDefinitionUID,
		int	ribNumber )

◆ SetTrailingEdgeInnerPoint()

TIGL_EXPORT void tigl::CCPACSWingCell::SetTrailingEdgeInnerPoint	(	double	eta,
		double	xsi )

◆ SetTrailingEdgeOuterPoint()

TIGL_EXPORT void tigl::CCPACSWingCell::SetTrailingEdgeOuterPoint	(	double	eta,
		double	xsi )

◆ SetTrailingEdgeSpar()

TIGL_EXPORT void tigl::CCPACSWingCell::SetTrailingEdgeSpar ( const std::string & sparUID )

◆ TrimChordwise()

void tigl::CCPACSWingCell::TrimChordwise	(	GeometryCache &	cache,
		ChordWiseBorder	border,
		CCPACSWingCellPositionChordwise const &	positioning,
		double	tol = 5e-3 ) const

private

TrimChordwise trims the wing skin in chordwise direction Depending on the enum border, it can be a leading edge or trailing edge border. This function is called by BuildSkinGeometry to trim the wing shape in chordwise direction.

This function is used, it the borders of the cell are defined relative to the wing skin via contour coordinates.

Parameters

cache	The shape of the wing cell
border	a ChordWiseBorder enum, denoting whether it is a LE or a TE border
positioning	CPACS definition of the border
tol	a tolerance

◆ TrimSpanwise()

void tigl::CCPACSWingCell::TrimSpanwise	(	GeometryCache &	cache,
		SpanWiseBorder	border,
		CCPACSWingCellPositionSpanwise const &	positioning,
		double	tol = 5e-3 ) const

private

TrimSpanwise trims the wing skin in spanwise direction Depending on the enum border, it can be a inner or outer border. This function is called by BuildSkinGeometry to trim the wing shape in spanwise direction.

This function is used, it the borders of the cell are defined relative to the wing skin via contour coordinates.

Parameters

cache	The shape of the wing cell
border	a SpanWiseBorder enum, denoting whether it is an inner or outer border
positioning	CPACS definition of the border
tol	a tolerance

◆ UpdateEtaXsiValues()

void tigl::CCPACSWingCell::UpdateEtaXsiValues ( EtaXsiCache & cache ) const

private

Field Documentation

◆ m_etaXsiCache

Cache<EtaXsiCache, CCPACSWingCell> tigl::CCPACSWingCell::m_etaXsiCache

private

◆ m_geometryCache

Cache<GeometryCache, CCPACSWingCell> tigl::CCPACSWingCell::m_geometryCache

private

The documentation for this class was generated from the following file:

CCPACSWingCell.h

Data Structures

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ ChordWiseBorder

◆ SpanWiseBorder

Constructor & Destructor Documentation

◆ CCPACSWingCell()

◆ ~CCPACSWingCell()

Member Function Documentation

◆ BuildSkinGeometry()

◆ computePositioningEtaXsi()

◆ CutChordwise()

◆ CutSpanwise()

◆ GetComponentIntent()

◆ GetComponentType()

◆ GetDefaultedUID()

◆ GetLeadingEdgeInnerPoint()

◆ GetLeadingEdgeOuterPoint()

◆ GetLoft()

◆ GetMaterial() [1/2]

◆ GetMaterial() [2/2]

◆ GetRibCutGeometry()

◆ GetSkinGeometry()

◆ GetTrailingEdgeInnerPoint()

◆ GetTrailingEdgeOuterPoint()

◆ InvalidateImpl()

◆ IsConvex()

◆ IsInside()

◆ IsPartOfCell() [1/2]

◆ IsPartOfCell() [2/2]

◆ IsPartOfCellImpl()

◆ ReadCPACS()

◆ Reset()

◆ SetInnerBorderRib()

◆ SetLeadingEdgeInnerPoint()

◆ SetLeadingEdgeOuterPoint()

◆ SetLeadingEdgeSpar()

◆ SetOuterBorderRib()

◆ SetTrailingEdgeInnerPoint()

◆ SetTrailingEdgeOuterPoint()

◆ SetTrailingEdgeSpar()

◆ TrimChordwise()

◆ TrimSpanwise()

◆ UpdateEtaXsiValues()

Field Documentation

◆ m_etaXsiCache

◆ m_geometryCache
