tigl::CCPACSGenericSystem Class Reference

#include <CCPACSGenericSystem.h>

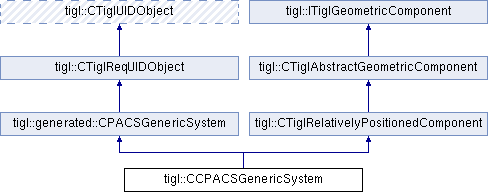

Inheritance diagram for tigl::CCPACSGenericSystem:

Public Member Functions
TIGL_EXPORT	CCPACSGenericSystem (CCPACSGenericSystems *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT boost::optional< CTiglPoint >	GetCenterOfGravity () const
	Returns the center of gravity of the system.
TIGL_EXPORT TiglGeometricComponentIntent	GetComponentIntent () const override
TIGL_EXPORT TiglGeometricComponentType	GetComponentType () const override
TIGL_EXPORT CCPACSConfiguration &	GetConfiguration () const
TIGL_EXPORT std::string	GetDefaultedUID () const override
TIGL_EXPORT double	GetMassAllComponents () const
	Returns the total mass of all components in the system.
TIGL_EXPORT double	GetMassPositionedComponents () const
	Returns the total mass of all explicitly positioned components.
virtual TIGL_EXPORT	~CCPACSGenericSystem ()
Public Member Functions inherited from tigl::generated::CPACSGenericSystem
TIGL_EXPORT	CPACSGenericSystem (CCPACSGenericSystems *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT boost::optional< CPACSComponents > &	GetComponents ()
virtual TIGL_EXPORT const boost::optional< CPACSComponents > &	GetComponents () const
virtual TIGL_EXPORT CPACSComponents &	GetComponents (CreateIfNotExistsTag)
virtual TIGL_EXPORT const boost::optional< std::string > &	GetDescription () const
virtual TIGL_EXPORT const std::string &	GetName () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CCPACSGenericSystems *	GetParent ()
TIGL_EXPORT const CCPACSGenericSystems *	GetParent () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath)
virtual TIGL_EXPORT void	RemoveComponents ()
virtual TIGL_EXPORT void	SetDescription (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetName (const std::string &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSGenericSystem ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::CTiglRelativelyPositionedComponent
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (MaybeOptionalPtr< std::string > parentUid, MaybeOptionalPtr< CCPACSTransformationSE3 > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans)
TIGL_EXPORT	CTiglRelativelyPositionedComponent (tigl::CTiglRelativelyPositionedComponent *parent, MaybeOptionalPtr< CCPACSTransformation > trans, boost::optional< TiglSymmetryAxis > *symmetryAxis)
TIGL_EXPORT ChildContainerType	GetChildren (bool recursive)
TIGL_EXPORT boost::optional< const std::string & >	GetParentUID () const
virtual TIGL_EXPORT CTiglPoint	GetRotation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetRotationType () const
virtual TIGL_EXPORT CTiglPoint	GetScaling () const
virtual TIGL_EXPORT ECPACSTranslationType	GetScalingType () const
TIGL_EXPORT TiglSymmetryAxis	GetSymmetryAxis () const override
virtual TIGL_EXPORT CTiglTransformation	GetTransformationMatrix () const
virtual TIGL_EXPORT CTiglPoint	GetTranslation () const
virtual TIGL_EXPORT ECPACSTranslationType	GetTranslationType () const
TIGL_EXPORT void	Reset () const
TIGL_EXPORT void	SetParentUID (const std::string &parentUID)
virtual TIGL_EXPORT void	SetSymmetryAxis (const TiglSymmetryAxis &axis)
virtual TIGL_EXPORT void	SetTransformation (const CCPACSTransformation &transform)
Public Member Functions inherited from tigl::CTiglAbstractGeometricComponent
	CTiglAbstractGeometricComponent ()
TIGL_EXPORT Bnd_Box const &	GetBoundingBox () const
virtual TIGL_EXPORT bool	GetIsOn (const gp_Pnt &pnt) const
TIGL_EXPORT bool	GetIsOnMirrored (const gp_Pnt &pnt) const
TIGL_EXPORT PNamedShape	GetLoft () const override
virtual TIGL_EXPORT PNamedShape	GetMirroredLoft () const
TIGL_EXPORT void	Reset () const
Public Member Functions inherited from tigl::ITiglGeometricComponent
virtual bool	IsIndependentGeometry () const
virtual	~ITiglGeometricComponent ()

Protected Member Functions
PNamedShape	BuildLoft () const override
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default

Private Member Functions
std::string	GetShortShapeName () const

Additional Inherited Members
Public Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::vector< CTiglRelativelyPositionedComponent * >	ChildContainerType
Protected Types inherited from tigl::CTiglRelativelyPositionedComponent
typedef std::map< int, int >	FusedElementsContainerType
Protected Attributes inherited from tigl::generated::CPACSGenericSystem
boost::optional< CPACSComponents >	m_components
	Components.
boost::optional< std::string >	m_description
	Description.
std::string	m_name
	Name.
CCPACSGenericSystems *	m_parent
std::string	m_uID
	UID.
CTiglUIDManager *	m_uidMgr
Protected Attributes inherited from tigl::CTiglAbstractGeometricComponent
Cache< Bnd_Box, CTiglAbstractGeometricComponent >	bounding_box
Cache< PNamedShape, CTiglAbstractGeometricComponent >	loft

Constructor & Destructor Documentation

CCPACSGenericSystem()

TIGL_EXPORT tigl::CCPACSGenericSystem::CCPACSGenericSystem	(	CCPACSGenericSystems *	parent,
		CTiglUIDManager *	uidMgr )

~CCPACSGenericSystem()

virtual TIGL_EXPORT tigl::CCPACSGenericSystem::~CCPACSGenericSystem ( )

virtual

Member Function Documentation

BuildLoft()

PNamedShape tigl::CCPACSGenericSystem::BuildLoft ( ) const

overrideprotectedvirtual

Implements tigl::CTiglAbstractGeometricComponent.

GetCenterOfGravity()

TIGL_EXPORT boost::optional< CTiglPoint > tigl::CCPACSGenericSystem::GetCenterOfGravity

(

)

const

Returns the center of gravity of the system.

The system CoG is computed as the mass-weighted average of the global centers of gravity of all contained CCPACSComponent instances.

Only components that satisfy all of the following conditions are considered:

• The component is explicitly positioned (see CCPACSComponent::IsPositioned()).
• A valid positive mass is available.
• A global center of gravity can be determined.

If no contributing mass is available, boost::none is returned.

Returns

Global system center of gravity, or boost::none if undefined.

GetComponentIntent()

TIGL_EXPORT TiglGeometricComponentIntent tigl::CCPACSGenericSystem::GetComponentIntent ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetComponentType()

TIGL_EXPORT TiglGeometricComponentType tigl::CCPACSGenericSystem::GetComponentType ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetConfiguration()

TIGL_EXPORT CCPACSConfiguration & tigl::CCPACSGenericSystem::GetConfiguration

(

)

const

GetDefaultedUID()

TIGL_EXPORT std::string tigl::CCPACSGenericSystem::GetDefaultedUID ( ) const

overridevirtual

Implements tigl::ITiglGeometricComponent.

GetMassAllComponents()

TIGL_EXPORT double tigl::CCPACSGenericSystem::GetMassAllComponents

(

)

const

Returns the total mass of all components in the system.

The mass is computed as the sum of the masses of all contained CCPACSComponent instances.

Components without a valid mass definition contribute zero mass. Positioning of the components is not required.

Returns

Total mass of all components in the system.

GetMassPositionedComponents()

TIGL_EXPORT double tigl::CCPACSGenericSystem::GetMassPositionedComponents

(

)

const

Returns the total mass of all explicitly positioned components.

The mass is computed as the sum of the masses of all contained CCPACSComponent instances for which IsPositioned() returns true.

Components without a valid mass definition contribute zero mass.

Returns

Total mass of all positioned components in the system.

GetShortShapeName()

std::string tigl::CCPACSGenericSystem::GetShortShapeName ( ) const

private

---

The documentation for this class was generated from the following file:

• CCPACSGenericSystem.h
