tigl::CCPACSFuselageStringerFramePosition Class Reference

#include <CCPACSFuselageStringerFramePosition.h>

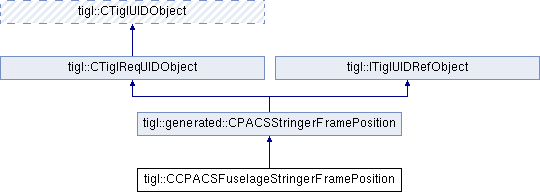

Inheritance diagram for tigl::CCPACSFuselageStringerFramePosition:

Data Structures
struct	RelativePositionCache

Public Member Functions
TIGL_EXPORT	CCPACSFuselageStringerFramePosition (CCPACSFrame *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT	CCPACSFuselageStringerFramePosition (CCPACSFuselageStringer *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT double	GetPositionXRel () const
TIGL_EXPORT double	GetReferenceYRel () const
TIGL_EXPORT double	GetReferenceZRel () const
TIGL_EXPORT gp_Pnt	GetRefPoint () const
TIGL_EXPORT void	GetXBorders (double &ymin, double &ymax)
TIGL_EXPORT void	GetYBorders (double &ymin, double &ymax)
TIGL_EXPORT void	GetZBorders (double &zmin, double &zmax)
virtual TIGL_EXPORT void	SetContinuity (const boost::optional< ECPACSContinuity > &value) override
virtual TIGL_EXPORT void	SetInterpolation (const boost::optional< ECPACSInterpolation > &value) override
virtual TIGL_EXPORT void	SetPositionX_choice1 (const boost::optional< double > &value) override
TIGL_EXPORT void	SetPositionXRel (double positionXRel)
virtual TIGL_EXPORT void	SetReferenceAngle (const double &value) override
virtual TIGL_EXPORT void	SetReferenceY (const double &value) override
TIGL_EXPORT void	SetReferenceYRel (double referenceYRel)
virtual TIGL_EXPORT void	SetReferenceZ (const double &value) override
TIGL_EXPORT void	SetReferenceZRel (double referenceZRel)
Public Member Functions inherited from tigl::generated::CPACSStringerFramePosition
TIGL_EXPORT	CPACSStringerFramePosition (CCPACSFrame *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT	CPACSStringerFramePosition (CCPACSFuselageStringer *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT boost::optional< CPACSAlignmentStringFrame > &	GetAlignment ()
virtual TIGL_EXPORT const boost::optional< CPACSAlignmentStringFrame > &	GetAlignment () const
virtual TIGL_EXPORT CPACSAlignmentStringFrame &	GetAlignment (CreateIfNotExistsTag)
virtual TIGL_EXPORT const boost::optional< CPACSContinuity > &	GetContinuity () const
virtual TIGL_EXPORT const boost::optional< CPACSInterpolation > &	GetInterpolation () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
template<typename P>
P *	GetParent ()
template<typename P>
const P *	GetParent () const
virtual TIGL_EXPORT const boost::optional< double > &	GetPositionX_choice1 () const
virtual TIGL_EXPORT const double &	GetReferenceAngle () const
virtual TIGL_EXPORT const double &	GetReferenceY () const
virtual TIGL_EXPORT const double &	GetReferenceZ () const
virtual TIGL_EXPORT const boost::optional< std::string > &	GetSectionElementUID_choice2 () const
virtual TIGL_EXPORT const std::string &	GetStructuralElementUID () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
template<typename P>
bool	IsParent () const
virtual TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath)
virtual TIGL_EXPORT void	RemoveAlignment ()
virtual TIGL_EXPORT void	SetSectionElementUID_choice2 (const boost::optional< std::string > &value)
virtual TIGL_EXPORT void	SetStructuralElementUID (const std::string &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
TIGL_EXPORT bool	ValidateChoices () const
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSStringerFramePosition ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default

Private Member Functions
ITiglFuselageDuctStructure const *	GetStructureInterface () const
void	InvalidateImpl (const boost::optional< std::string > &source) const override
void	UpdateRelativePositioning (RelativePositionCache &cache) const

Private Attributes
Cache< RelativePositionCache, CCPACSFuselageStringerFramePosition >	m_relCache

Additional Inherited Members
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default
Protected Attributes inherited from tigl::generated::CPACSStringerFramePosition
boost::optional< CPACSAlignmentStringFrame >	m_alignment
	Alignment.
boost::optional< CPACSContinuity >	m_continuity
	Continuity definition for profile extrusion: 0= C0 (allows sharp edges, default), 2= C2 (defines curvature continuity)
boost::optional< CPACSInterpolation >	m_interpolation
	Interpolation between different profiles: 0= no interpolation 1= interpolation of structural profile.
void *	m_parent
const std::type_info *	m_parentType
boost::optional< double >	m_positionX_choice1
	X position in absolute value.
double	m_referenceAngle
	Angle definition to calculate intersection with loft.
double	m_referenceY
	Y coordinate of reference system.
double	m_referenceZ
	Z coordinate of reference system.
boost::optional< std::string >	m_sectionElementUID_choice2
	UID reference to a fuselageSectionElement.
std::string	m_structuralElementUID
	UID of profile based structural element.
std::string	m_uID
	UID.
CTiglUIDManager *	m_uidMgr

Constructor & Destructor Documentation

CCPACSFuselageStringerFramePosition() [1/2]

TIGL_EXPORT tigl::CCPACSFuselageStringerFramePosition::CCPACSFuselageStringerFramePosition	(	CCPACSFrame *	parent,
		CTiglUIDManager *	uidMgr )

CCPACSFuselageStringerFramePosition() [2/2]

TIGL_EXPORT tigl::CCPACSFuselageStringerFramePosition::CCPACSFuselageStringerFramePosition	(	CCPACSFuselageStringer *	parent,
		CTiglUIDManager *	uidMgr )

Member Function Documentation

GetPositionXRel()

TIGL_EXPORT double tigl::CCPACSFuselageStringerFramePosition::GetPositionXRel

(

)

const

GetReferenceYRel()

TIGL_EXPORT double tigl::CCPACSFuselageStringerFramePosition::GetReferenceYRel

(

)

const

GetReferenceZRel()

TIGL_EXPORT double tigl::CCPACSFuselageStringerFramePosition::GetReferenceZRel

(

)

const

GetRefPoint()

TIGL_EXPORT gp_Pnt tigl::CCPACSFuselageStringerFramePosition::GetRefPoint

(

)

const

GetStructureInterface()

ITiglFuselageDuctStructure const * tigl::CCPACSFuselageStringerFramePosition::GetStructureInterface ( ) const

private

GetXBorders()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::GetXBorders	(	double &	ymin,
		double &	ymax )

GetYBorders()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::GetYBorders	(	double &	ymin,
		double &	ymax )

GetZBorders()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::GetZBorders	(	double &	zmin,
		double &	zmax )

InvalidateImpl()

void tigl::CCPACSFuselageStringerFramePosition::InvalidateImpl ( const boost::optional< std::string > & source ) const

overrideprivatevirtual

Reimplemented from tigl::CTiglUIDObject.

SetContinuity()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetContinuity ( const boost::optional< ECPACSContinuity > & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetInterpolation()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetInterpolation ( const boost::optional< ECPACSInterpolation > & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetPositionX_choice1()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetPositionX_choice1 ( const boost::optional< double > & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetPositionXRel()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetPositionXRel

(

double

positionXRel

)

SetReferenceAngle()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetReferenceAngle ( const double & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetReferenceY()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetReferenceY ( const double & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetReferenceYRel()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetReferenceYRel

(

double

referenceYRel

)

SetReferenceZ()

virtual TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetReferenceZ ( const double & value )

overridevirtual

Reimplemented from tigl::generated::CPACSStringerFramePosition.

SetReferenceZRel()

TIGL_EXPORT void tigl::CCPACSFuselageStringerFramePosition::SetReferenceZRel

(

double

referenceZRel

)

UpdateRelativePositioning()

void tigl::CCPACSFuselageStringerFramePosition::UpdateRelativePositioning ( RelativePositionCache & cache ) const

private

Field Documentation

m_relCache

Cache<RelativePositionCache, CCPACSFuselageStringerFramePosition> tigl::CCPACSFuselageStringerFramePosition::m_relCache

private

---

The documentation for this class was generated from the following file:

• CCPACSFuselageStringerFramePosition.h
