tigl::CCPACSRotationCurve Class Reference

#include <CCPACSRotationCurve.h>

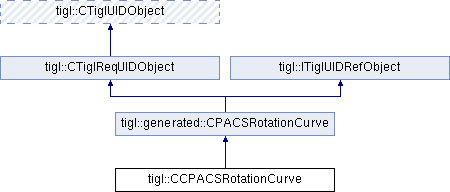

Inheritance diagram for tigl::CCPACSRotationCurve:

Public Types
enum	axis { x =0 , y , z }

Public Member Functions
	CCPACSRotationCurve (CCPACSNacelleCowl *parent, CTiglUIDManager *uidMgr)
TIGL_EXPORT TopoDS_Wire	GetCurve () const
TIGL_EXPORT TopoDS_Face	GetRotationSurface (gp_Pnt origin={0., 0., 0.}, axis dir=x) const
Public Member Functions inherited from tigl::generated::CPACSRotationCurve
TIGL_EXPORT	CPACSRotationCurve (CCPACSNacelleCowl *parent, CTiglUIDManager *uidMgr)
virtual TIGL_EXPORT const std::string &	GetCurveProfileUID () const
virtual TIGL_EXPORT const double &	GetEndZeta () const
virtual TIGL_EXPORT const double &	GetEndZetaBlending () const
virtual TIGL_EXPORT CTiglUIDObject *	GetNextUIDParent ()
virtual TIGL_EXPORT const CTiglUIDObject *	GetNextUIDParent () const
TIGL_EXPORT CCPACSNacelleCowl *	GetParent ()
TIGL_EXPORT const CCPACSNacelleCowl *	GetParent () const
virtual TIGL_EXPORT const std::string &	GetReferenceSectionUID () const
virtual TIGL_EXPORT const double &	GetStartZeta () const
virtual TIGL_EXPORT const double &	GetStartZetaBlending () const
virtual TIGL_EXPORT const std::string &	GetUID () const
TIGL_EXPORT CTiglUIDManager &	GetUIDManager ()
TIGL_EXPORT const CTiglUIDManager &	GetUIDManager () const
virtual TIGL_EXPORT void	ReadCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath)
virtual TIGL_EXPORT void	SetCurveProfileUID (const std::string &value)
virtual TIGL_EXPORT void	SetEndZeta (const double &value)
virtual TIGL_EXPORT void	SetEndZetaBlending (const double &value)
virtual TIGL_EXPORT void	SetReferenceSectionUID (const std::string &value)
virtual TIGL_EXPORT void	SetStartZeta (const double &value)
virtual TIGL_EXPORT void	SetStartZetaBlending (const double &value)
virtual TIGL_EXPORT void	SetUID (const std::string &value)
virtual TIGL_EXPORT void	WriteCPACS (const TixiDocumentHandle &tixiHandle, const std::string &xpath) const
virtual TIGL_EXPORT	~CPACSRotationCurve ()
Public Member Functions inherited from tigl::CTiglReqUIDObject
boost::optional< std::string >	GetObjectUID () const
virtual	~CTiglReqUIDObject ()=default
Public Member Functions inherited from tigl::CTiglUIDObject
TIGL_EXPORT void	Invalidate (const boost::optional< std::string > &source=boost::none) const
Public Member Functions inherited from tigl::ITiglUIDRefObject
virtual	~ITiglUIDRefObject ()=default

Private Member Functions
void	CutCurveAtZetas (TopoDS_Edge &edge) const

Additional Inherited Members
Protected Member Functions inherited from tigl::CTiglUIDObject
	~CTiglUIDObject ()=default
Protected Attributes inherited from tigl::generated::CPACSRotationCurve
std::string	m_curveProfileUID
	UID of the rotation curve profile; the profile should be defined in x=[0..1] to be transformed by the section which is referenced by referenceSectionUID.
double	m_endZeta
	End zeta [-1,..,1]; relative curve coordante along the rotation curve up to which it will be inserted in the nacelle.
double	m_endZetaBlending
	End zeta for blending; relative curve coordinate along the nacelle profile at which blending from the rotation curve to the nacelle profile will end.
CCPACSNacelleCowl *	m_parent
std::string	m_referenceSectionUID
	UID of the section which serves as reference.
double	m_startZeta
	Start zeta [-1,..,1]; relative curve coordante along the rotation curve from which it will be inserted in the nacelle.
double	m_startZetaBlending
	Start zeta for blending [-1..1]; relative curve coordinate along the nacelle profile at which blending from the nacelle profile to the rotation curve will begin.
std::string	m_uID
CTiglUIDManager *	m_uidMgr

Member Enumeration Documentation

axis

enum tigl::CCPACSRotationCurve::axis

Enumerator
x
y
z

Constructor & Destructor Documentation

CCPACSRotationCurve()

tigl::CCPACSRotationCurve::CCPACSRotationCurve ( CCPACSNacelleCowl * parent, CTiglUIDManager * uidMgr )

inline

Member Function Documentation

CutCurveAtZetas()

void tigl::CCPACSRotationCurve::CutCurveAtZetas ( TopoDS_Edge & edge ) const

private

GetCurve()

TIGL_EXPORT TopoDS_Wire tigl::CCPACSRotationCurve::GetCurve

(

)

const

GetRotationSurface()

TIGL_EXPORT TopoDS_Face tigl::CCPACSRotationCurve::GetRotationSurface	(	gp_Pnt	origin = {0., 0., 0.},
		axis	dir = x ) const

---

The documentation for this class was generated from the following file:

• CCPACSRotationCurve.h
